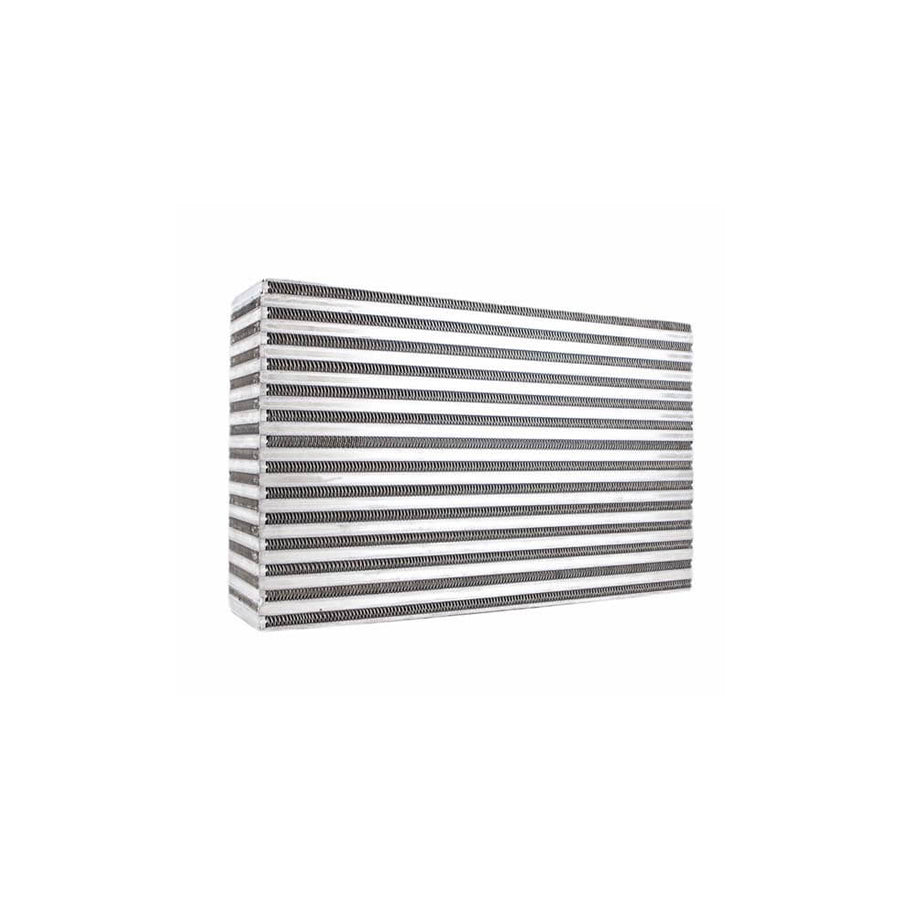

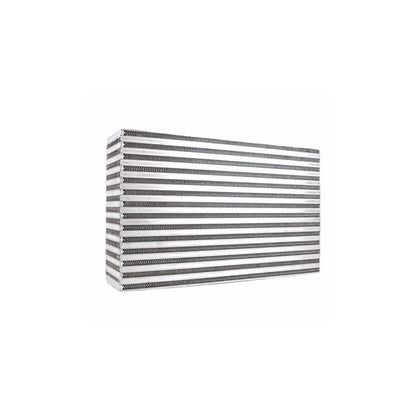

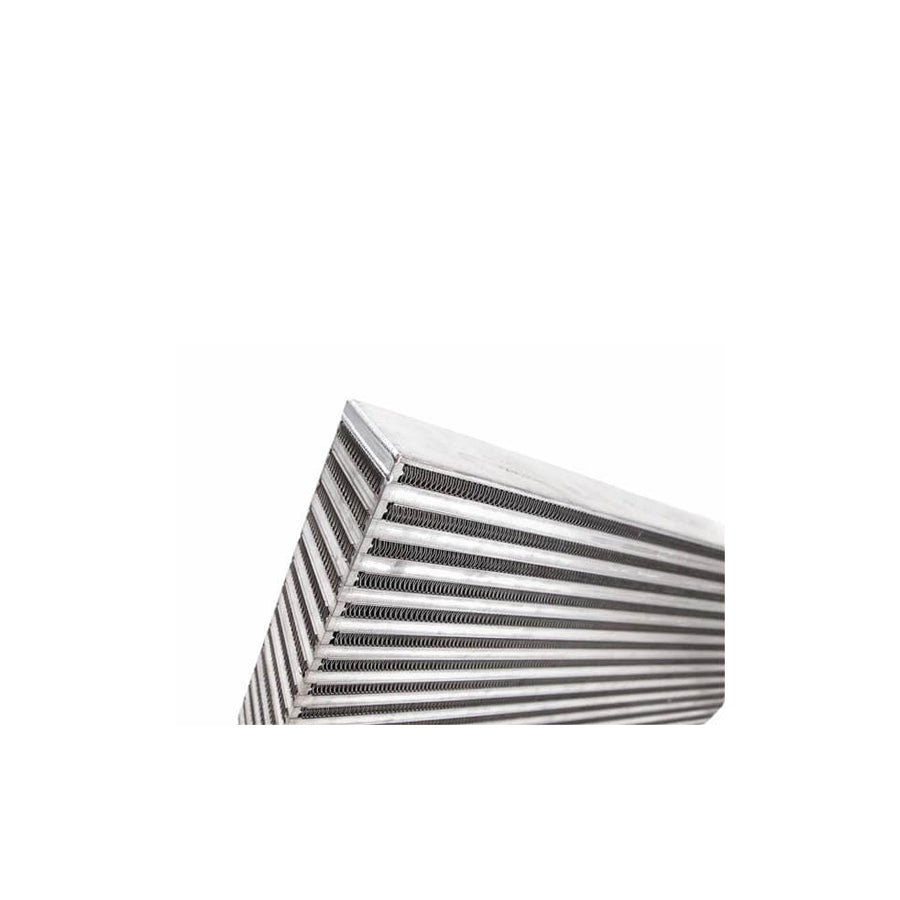

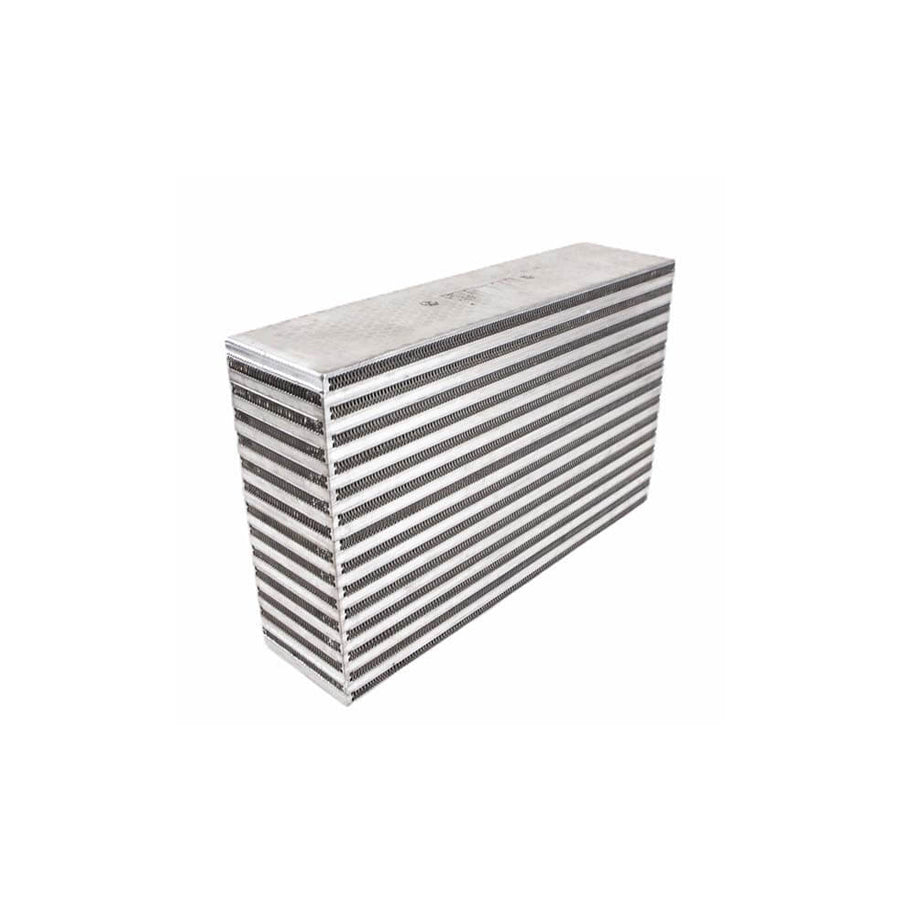

Garrett 703522-6004 785HP Air-to-Air Intercooler Core

Garrett 703522-6004 785HP Air-to-Air Intercooler Core

$434.14
$434.14 $434.14
9th Anniversary Badge

Price Match

Price Match Guarantee

If you find a lower price at an eligible UK retailer website, we will match it.

Fitting service at Xatrix, West Yorkshire

We can offer a fitting service for this part. Contact us for a fitting quote.

UNLOCK BIGGER DISCOUNTS WITH ML PLATINUM
Sign Up

Sign up now for FREE

View full details

CAC (18.00" x 12.11" x 4.50") - 785 HP

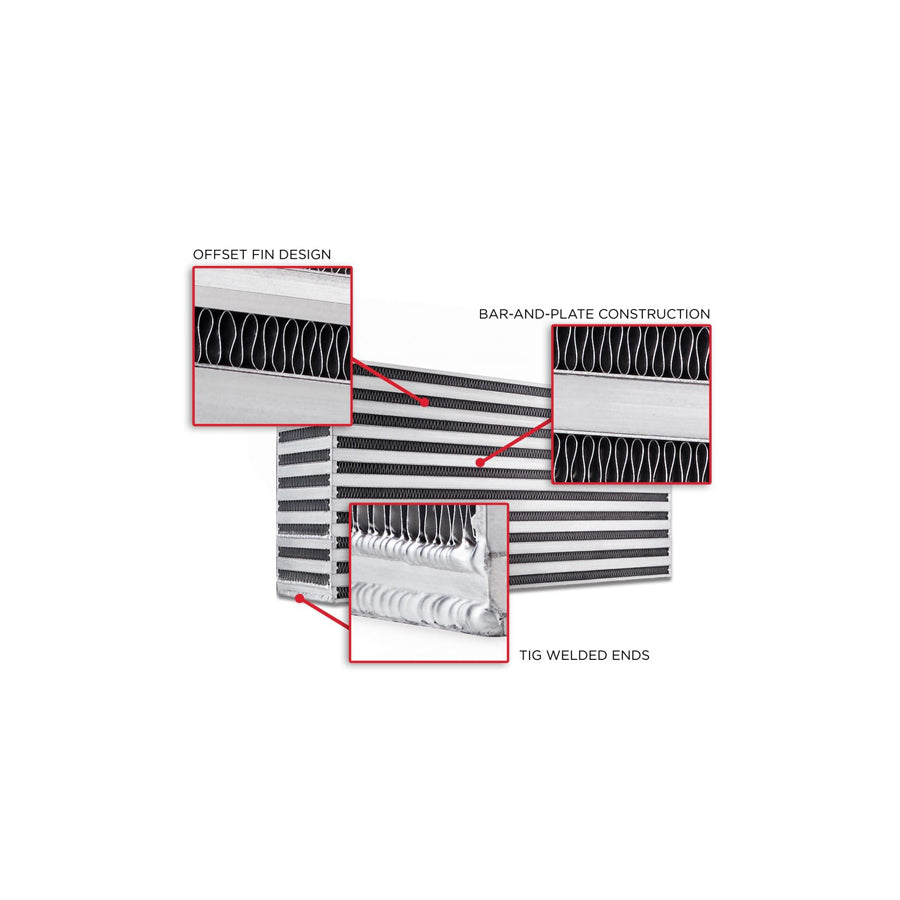

This large air to air bar and plate intercooler core is rated up to 785hp. This Garrett intercooler core is designed with a perpendicular cross-flow pattern to charge the air. In bar and plate designs the passages consist of plates on top and bottom with fins in between. The passages are enclosed by bars on either side depending on if it is a charge air passage or an ambient air/cooling passage. Passages are stacked alternately until the desired stack height is reached. On the sides of the stacked cores, added to the final passage is a side plate of thicker material to provide structural integrity, protect the more delicate fins, and provide a surface for welding on end tanks if desired.

Utilizing advanced Aerospace technology, Garrett intercoolers offer superior fatigue protection for the high boost pressures and temperatures of today’s extreme engines. With over 75 years of charge air cooler experience, Garrett remains ahead of the industry in intercooler design and function making it the number one choice for some of the premier names in the performance car industry.

Garrett intercoolers offer superior thermal fatigue protection for high boost pressures and temperatures of today’s extreme engines.



Specifications

Model : Air / Air
Supported Horsepower
 : 785
Length / Hot Flow
 : 18.0" (457mm)
Height / No Flow
 : 4.5" (114mm)
Width / Cold Flow : 12.1" (307mm)


Universal



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your license plate or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



GARRETT-703522-6004



Manufactured by

Garrett Motion
