New CANchecked GEN2 Multigauge for OBD2 values and analog sensors.

With OBD 2 cable and vehicle-specific bracket for Supra MK5 A90/A91 - LHD models air vent.

The brand new second Generation (GEN 2) CANchecked displays offer:

• Improved grafics with better anti aliasing
• Swipe instead of touch tip
• The widgets are more precisely adjustable
• New warning pop-up functions

What is CANchecked? CANchecked displays, gauges, softwares and sensors enables the visual display of important engine data, such as oil temperature, boost pressure, exhaust gas temperature etc... This can be done either via CAN Bus or OBD 2 (depending on the ECU values) or via additional analog sensors.

Note:

• This display will be delivered with an OBD II adapter cable. So installation is plug and play and all OBD 2 values which the engine control unit (ECU) outputs are displayed.
• The bezel of the display fits all Toyota Supra MK5 left-hand drive vehicles (LHD). A version for RHD (right-hand drive) is also available in. Data we support both the B58 (6 cylinders) and the B48 (4 cylinders).
• The CANchecked OBD2 displays work for a wide range of cars and engines with OBD 2. If your OBD2 model don't work or don't show correct values, then your car OBD2 protocol isn't implement already. But within two working days CANchecked can add the correct .tri file for your engine/car model. Contact us if you need help or more information

• 3.2 inch capacitive touch display with vehcile specific bracket for the air vent

• OBD 2 values can be displayed (adapter cable in included)

• 8GB SD Card Memory

• Up to 10 freely configurable display pages

• Connection via OBD 2 car port

• Two digital and four analog inputs for 0 - 5V sensors (for example oil pressure, fuel pressure, exhaust temperature (with adapter) and boost pressure)

• Optional shift light function

• Performance Meter (measures for example the time from 100-200 km/h)

• Individual minimum and maximum warning values

• Popup function when values exceed or fall below

• Screen brightness adjustable


Views:

• 10 pages to configure freely- Up to 17 widgets per page
• 10 different widgets (digital number, bar, speed, single pointer, log, Tableswitch, picture (from SD card), number, circle display, Haldex) - Widgets via Drag'n'Drop movable and resizable
• Depending on the widgets color adjustment possible

As an alternative, the online configurator is available. Here, the views can be created in advance and then copied to the SD card via the export function.

Performance Monitor

• High speed CAN integration gives you access to up to 128 vehicle sensors that you can display in real time. Swap sensors on the fly using the 2.8"/3.2" touchscreen and set up custom ranges and warning pop-ups using the DSS software.

Diagnostics

Swipe down from any page to diagnose malfunctions on the fly. CANchecked can read, diagnose, and erase codes on engine, ABS, Transmission, ESP, TPMS and other systems.

Data Logging

• Easy access to log on demand and save to the internal SD card.

Plug & Play Installation

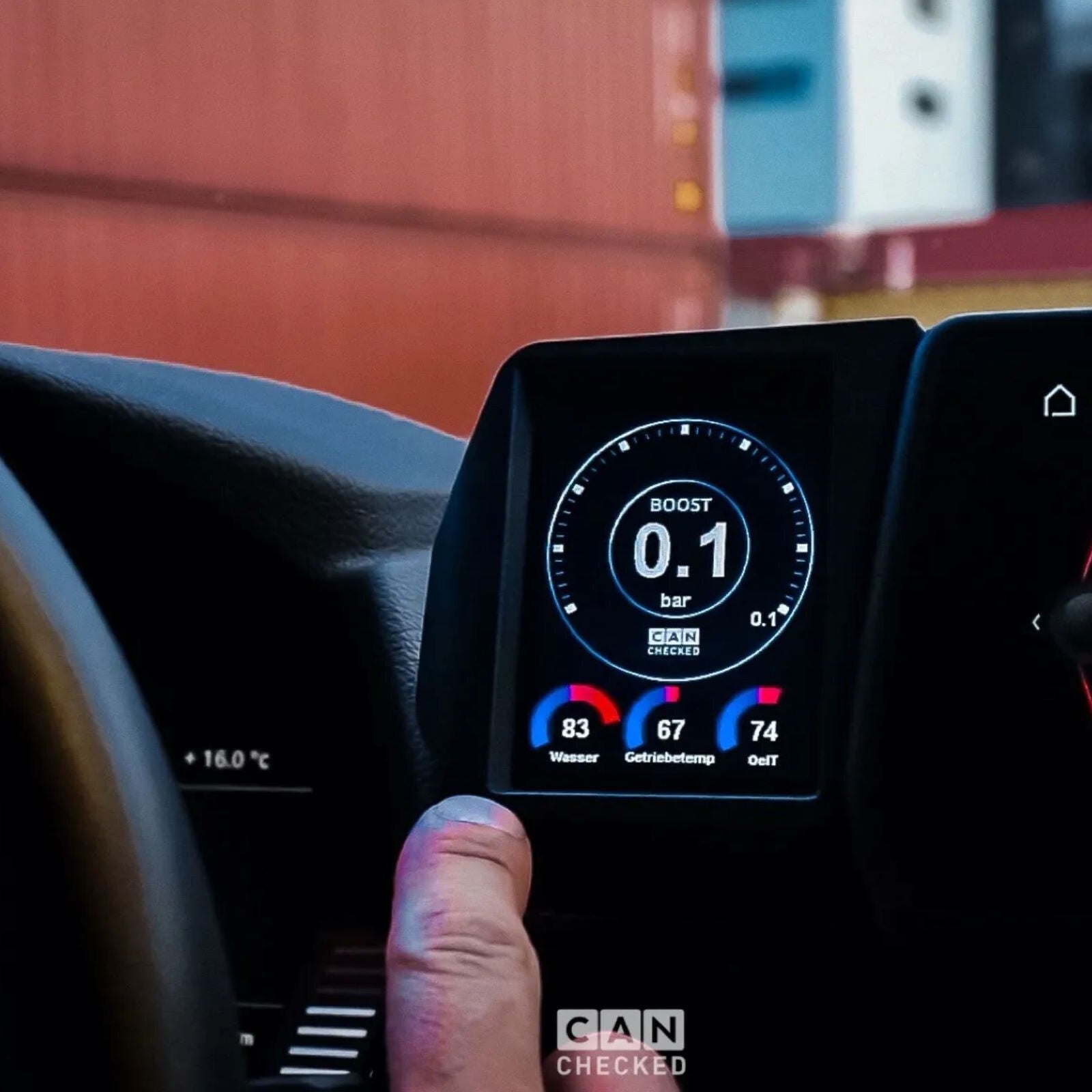

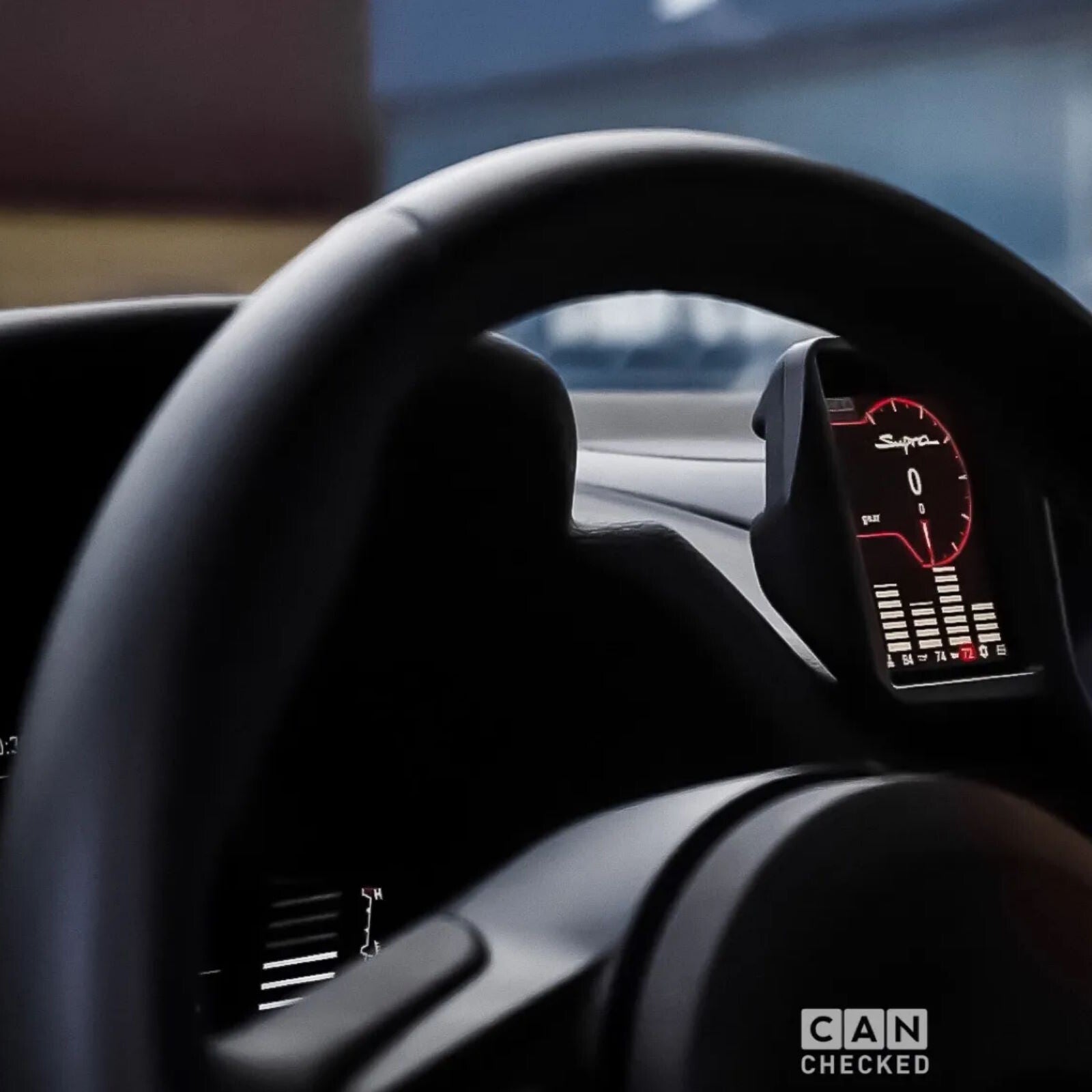

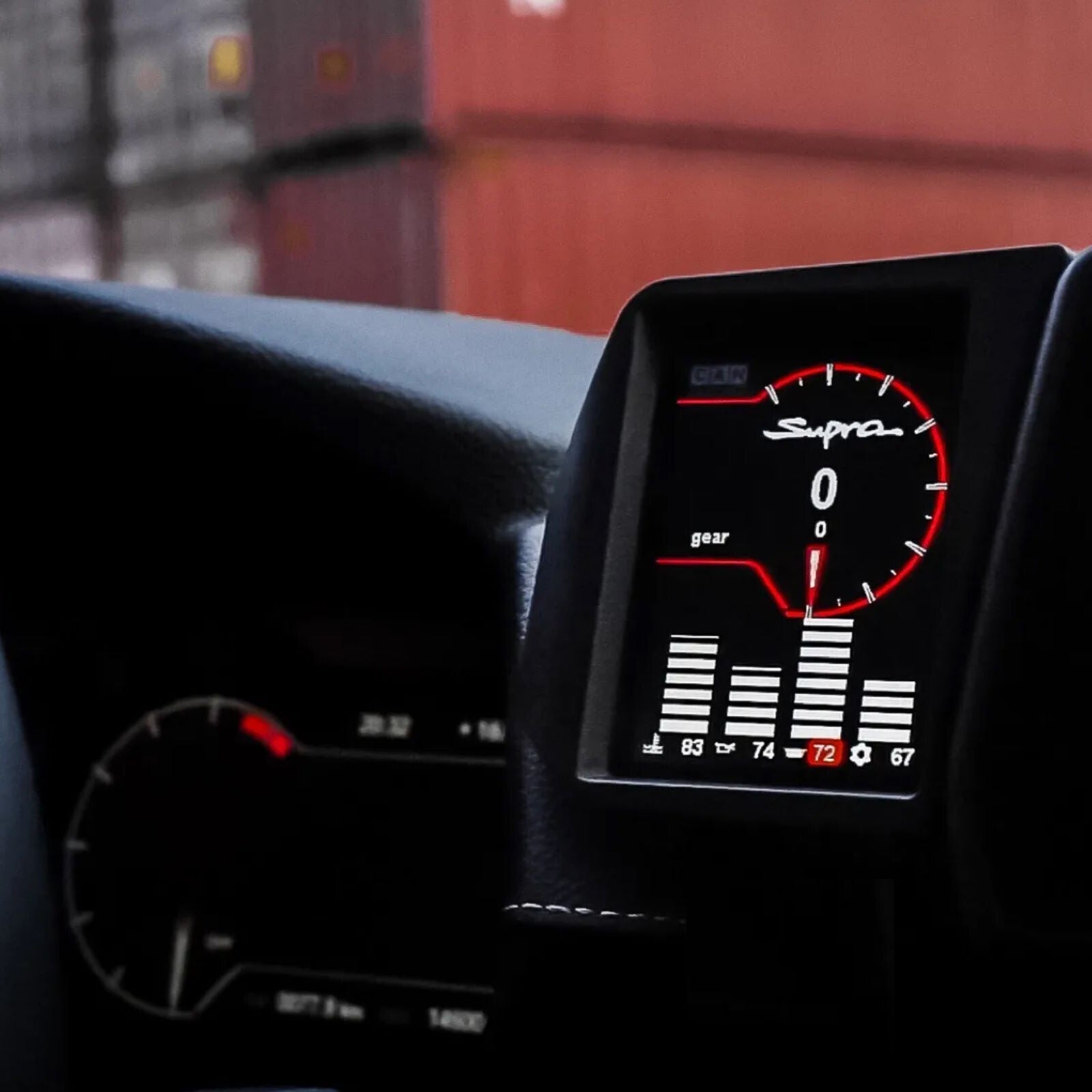

• CANchecked is precision designed and integrates perfectly with your vehicle's interior and retains the functionality of your car's vent.

Expandable Functionality

• 4 Analog + 2 Digital inputs allow you to monitor third party sensors and devices. Future licences in development will unlock Haldex, Water Methanol, Ethanol Fueling integration.

Customizable Screens

• CANchecked comes with six pre-loaded dashboards. A total of ten can be customized using the included software and library of widgets.

Your Data, The Way You Want It!

• CANchecked can display up to ten pages and has access to 128 of your vehicle's sensors. Use the touch screen to navigate between each page and choose which sensor you want to display. Need more customization? You can personalize your views by changing the graphics, sensors andwidgets using the provided DSS software. We've pre-loaded some examples on your CANchecked Display to get you started.

CANchecked optional accessories:

• A wide range of sensors, like oil- and water temperature, boost pressure, oil- and fuel pressure, etc...
• Haldex license for GEN 1 and GEN 2 optional available
• Serial adapter (VEMS + Ecumaster without CAN)
• Other vehicle-specific integrations

If available, installation manuals can be found on or CANchecked website

The display can be custom&nbspconfigured via the website. The dbc-converter for the Can Bus protocol and the online configurator for the widgets, whereby this can also be set via the touch display. The temperature range of the display is -10°C to 70°C. 12V are required as a voltage supply, 5V or 24V are optional possible.

FAQ

Will the Display heat up in the air vent?

No. The Displays are always protected against heat that’s flowing through the air vents.

Will the Air Vent still work with the display installed?

Yes it does. We’re always creating air vent solutions that still allow airflow passing by the display through special tunnels.

Can I change the appearance of the display, the units and scales?

Yes! With the different widget packs and the option to upload custom graphics you can completely individualize your display.

Can I use analog inputs?

Yes there are 6 analog inputs with the option to extend to more with our analog connectors. So you can read Pressures, Temperatures, Ethanol content, etc. We can also create complete packages for what you need!

What ECU Data can CANchecked Access?

By default, we deliver a prefabricated TRI file with your display. All sensors that are queried are defined here, f.e.:

• Temperatures: Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG temperature
• Pressures: Boost pressure, ambient pressure, fuel pressure, pre-feed pump
• Lambda / mixture: Lambda value, injection time, short-term lambda adjustment, longterm lambda adjustment
• Miscellaneous: Speed, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in%, terminal 30 voltage, oil level, torque, gear...
• If values are missing, they can easily be added.

Can I change the look of the boost gauge graphics to match my car?

You can use the CANchecked Display Setup Software to upload your own graphics. They need to be in the following format:

• Image Type: 24bit BMP file (R8 G8 B8)
• Sizes: Background: 320 pixels X 240 pixels, Boost gauge: 240 pixels X 240 pixels, Tachometer: 160 pixels X 160 pixels

• CANchecked 3.2 inch display

• Vehicle specific bracket for vent pod

• Cable set

• OBD 2 adapter cable (2 m)

• Fixing screws

• 8 GB micro SD card

• Micro SD Card Adapter

• Quickstart Guide

• Toyota A90 GR Supra 3.0L (2018+) LHD
• Toyota A90 GR Supra 2.0L (2021+) LHD

CC37024
