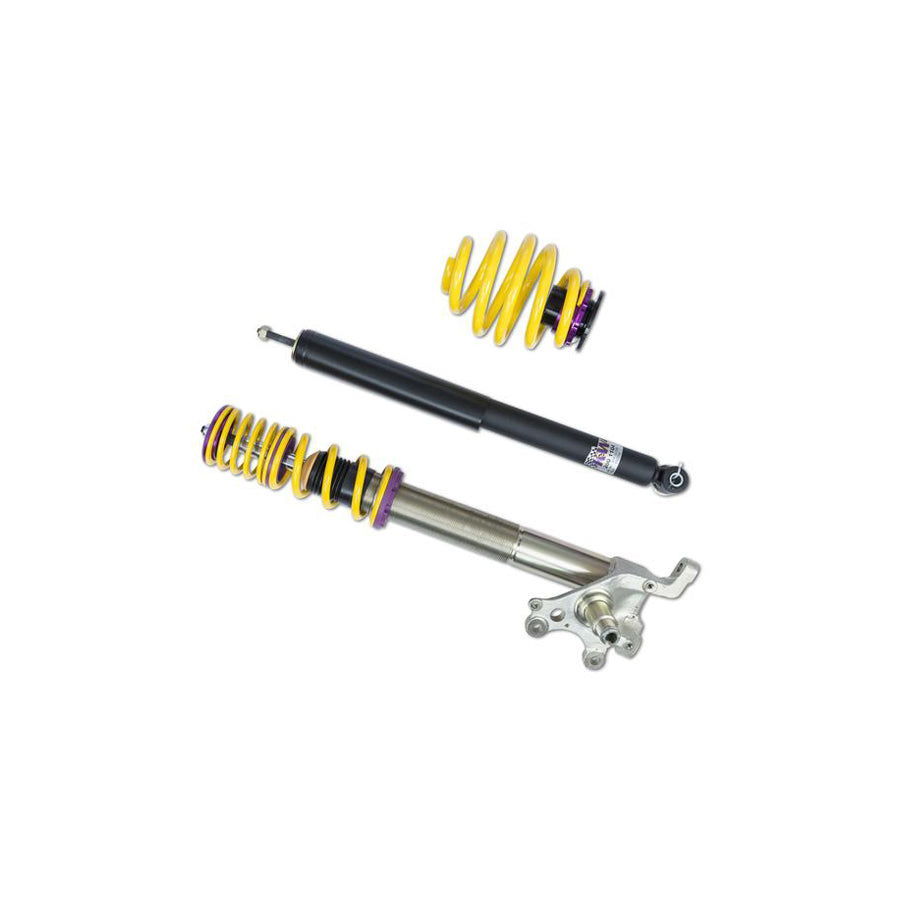

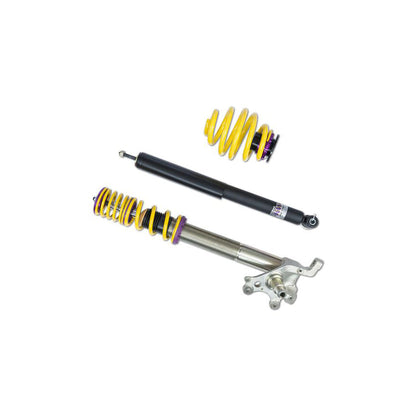

KW 102200BV BMW E30 Variant 1 Coilover Kit

KW 102200BV BMW E30 Variant 1 Coilover Kit

Regular price $2,893.47
Sale price $2,893.47
9th Anniversary Badge

Price Match

Available on stock order

Learn more on stock order delivery.

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth $0.00 USD.

Price Match Guarantee

If you find a lower price at an eligible USA retailer website, we will match it.

View full details

Sporty handling combined with outstanding looks. With factory pre-configured damping.
The KW V1 coilover kit is our entry model for more driving pleasure with an attractive and individually adjustable lowering. Due to its high-quality finish, the use of struts made from stainless steel, corrosion resistant springs and bump stops as well as compatible components stands for long driving pleasure - not just the car's life.

Continuous lowering
With the KW V1 coilover you can achieve maximum lowering in the tested adjustment range. Depending on vehicle model this varies between 30 to 70mm or 50 to 90mm. Even after years you can adjust the height quickly and easily due to the dirt resistant trapezoid thread and composite collar. Lowering at the front axle is made using our one piece composite height adjuster, on the rear axle this is the same unless the car has a separate spring and shock absorber. The supplied rear height adjuster sits either above or below the rear spring.

The benchmark for tuning fans
KW V1 coilover satisfies the sporty driver with its harmonic basic setup. Our engineers develop for each vehicle a specific damper setup and spring rate to increase the driving pleasure with optimal balance of sportiness and practicality. In the end, you don't buy any coilover, but a KW coilover which has been developed specifically for your type of vehicle. KW as a manufacturer uses only its own resources, high quality components and the same damper technology as high-volume manufacturers. With the KW V1 coilovers rolling motions of the body will be reduced during compression and you benefit from genuine directness and sportier handling while driving.

Trust In Our Experience
We are the market leader and innovator of individual suspension solutions for road and racetrack for more than 25 years. No matter where in the world, car driver, automotive manufacturers and tuners rely on our KW coilovers "Made in Germany". Each KW coilover kit, developed and manufactured in the Swabian town Fichtenberg, is subject to extensive stress tests during production to meet the high standards of our KW quality management. Of course, we give as a German manufacturer a 2-year warranty on our more than 4600 applications suspension solutions, which exceed OEM quality. The warranty will increase up to 5 years when the kit has been installed at one of our KW specialist dealers.

- Optimally pre-adjusted
- Sporty and comfortable dampening technology
- Stainless steel technology "inox-line"
- Individually height adjustable
- tested adjustment range
- Ready to install complete solution
- High quality components for a long durability
- Complete documentation for easy handling

Setup - Factory pre-configured damping setup
The KW V1 coilover kit has a vehicle-specific, fixed configured damper setup. The spring and damper match perfectly, so that you will experience an optimized balance of sportiness and comfort while driving.

Even with full load and maximum axle loads, the dampers always work with a sporty characteristic. Tuning fans whose focus are "Show & Shine" events are interested in the KW V1.



Front Lowering (mm) : 60 to 80
Rear Lowering (mm) : 55 to 80
Version : V1
Damping adjustment : No
Material : Galvanized steel
Diameter fa (mm) : 45 + 51
Approval : Part approval (§19.3)
Note (Product) : For cars with and without ABS



Specifications

Length : 76
Width : 46
Height : 15
Weight (kg) : 28



  • 3 SERIES
    • 3 Saloon (E30) (09/1982-03/1992)
      • 315 / 316 / 316i / 318i / 318is / 320i / 320is / 323i / 324d / 324td / 325e 2.7 / 325i

    • 3 Convertible (E30) (09/1982-11/1993)
      • 316i Baur TC / 318 Baur TC / 318i / 318i Baur TC / 320i / 323i / 325i

    • 3 Touring (E30) (07/1987-10/1994)
      • 316i / 318i / 320i / 324td / 325i

Note:

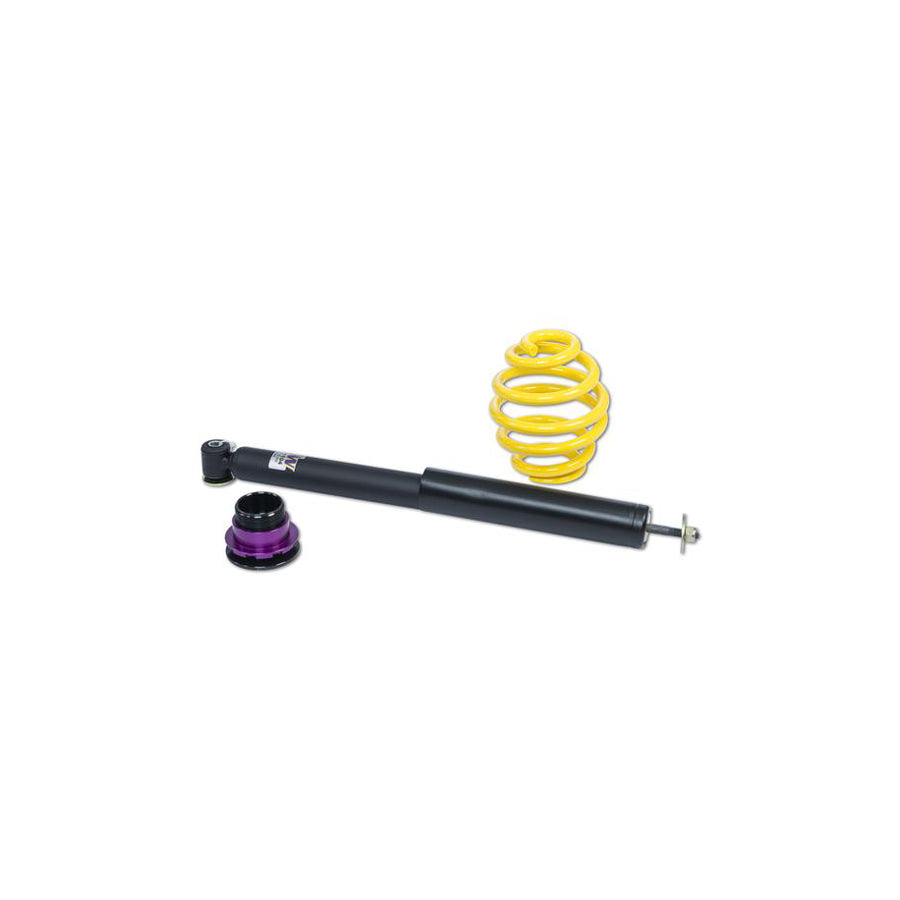

  • Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • When using original tires, wheel offset spacers may be required
  • Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.

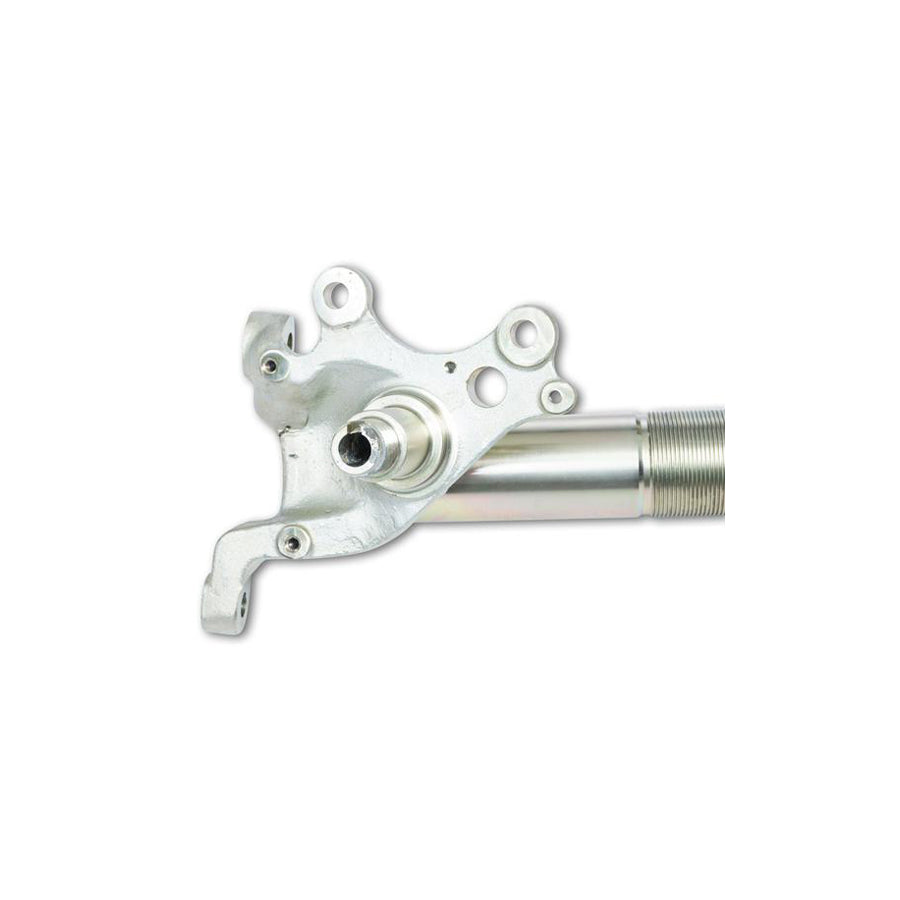

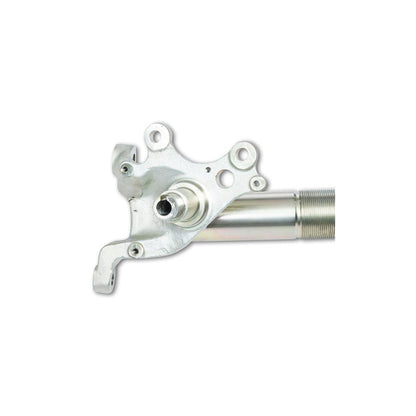

  • Front axle coilovers incl. Knuckle in galvanized steel



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your license plate or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



  • Parts Approval?
  • Installation Instruction?



102200BV


Manufactured by

KW


Warranty

  • Street Coilovers , Variant 1, Variant 2, Variant 3, Street Comfort - Limited Lifetime Warrantee
  • Bushings, Bump stops and Ball Joints - 1 Year
  • Club Sport Coilovers, 2 way Race Coilovers, 3 way Race Coilovers - No warrantee.



EAN

4250580478737
