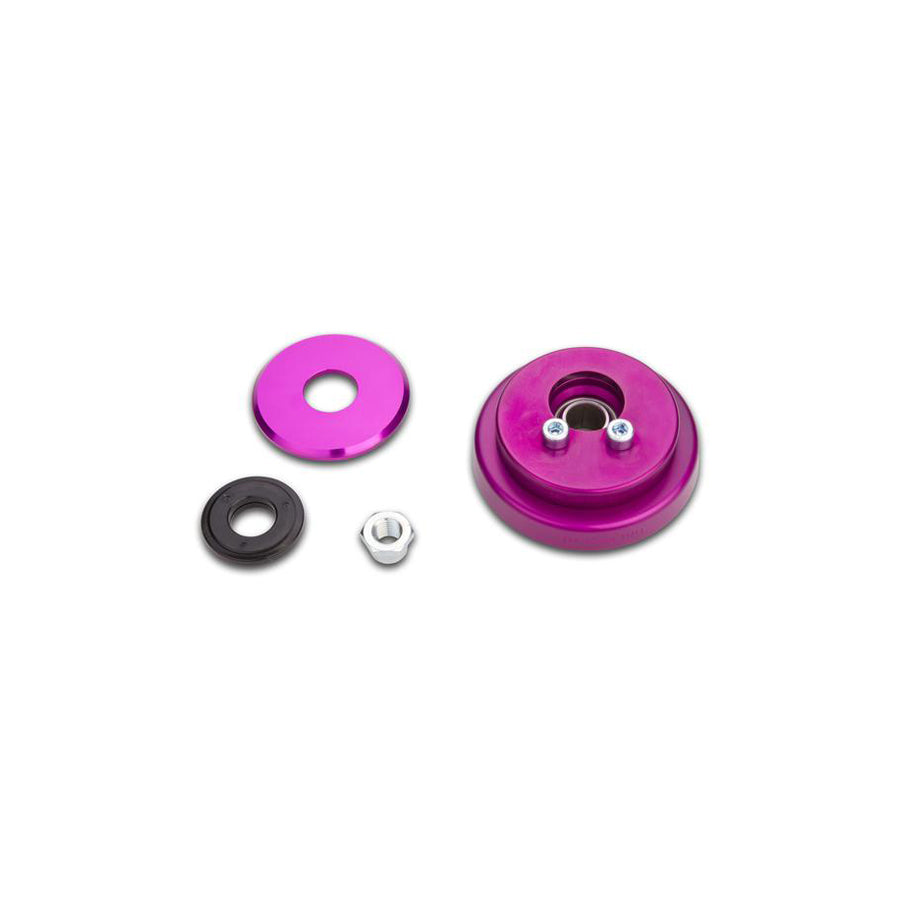

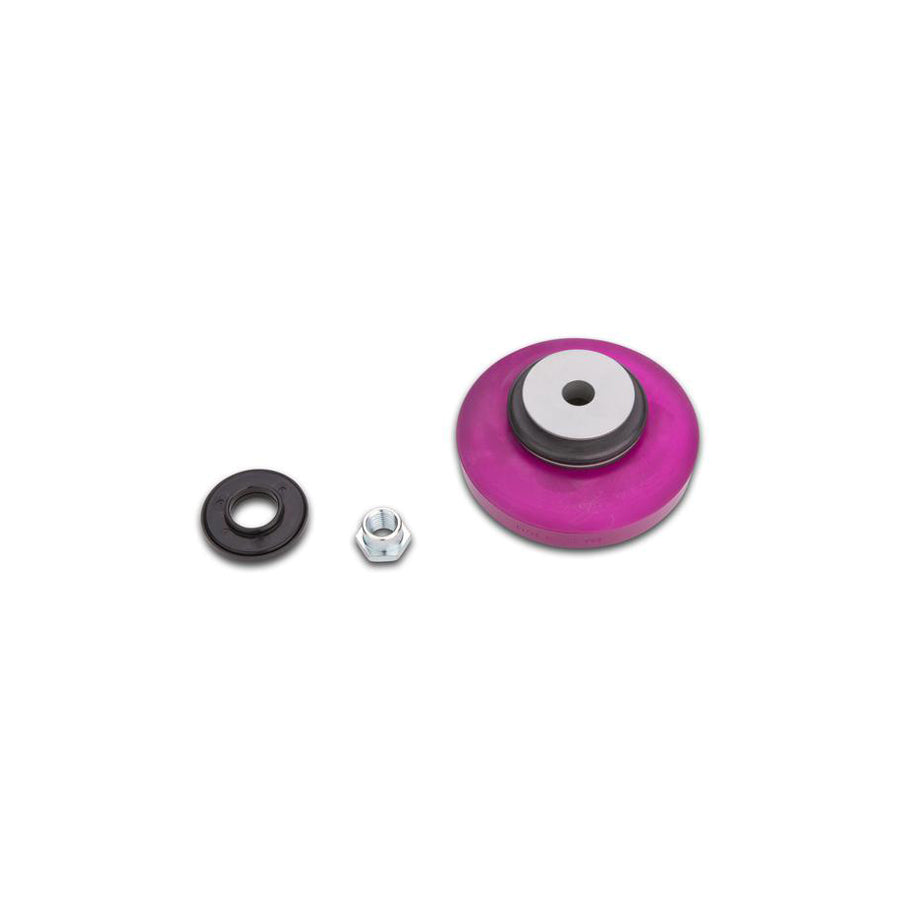

KW Clubsport aluminium unibal top mounts have been tranfered from motorsports to the street.
We also offer adjustable top mounts made from high tensile aluminium alloy for our KW Clubsport kits. Camber and caster (optional) adjustments are available on certain applications.

Designed for the toughest race track in the world: the Nurburgring Nordschleife
A special KW sealing system avoids an intrusion of dirt and water into the free of play and preloaded unibal bearings. Furthermore axial bearings allow rotation of springs at McPherson struts.

- Scaled camber adjustment (optionally caster adjustment)
- Sealed and preloaded spherical bearing
- Axial bearings allow rotation of springs at McPherston struts
- Made of tool steel (100Cr6): 58 to 64 HRC - hard chrome plated
- PTFE surface inlay, stainless steel outer ring (X20Cr13)

Note:

• Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
• For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW.
• Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
• Clubsport coilover with top mount: only with front axle top mount available

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your license plate or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

19000859

Manufactured by

KW

Warranty

• Street Coilovers , Variant 1, Variant 2, Variant 3, Street Comfort - Limited Lifetime Warrantee
• Bushings, Bump stops and Ball Joints - 1 Year
• Club Sport Coilovers, 2 way Race Coilovers, 3 way Race Coilovers - No warrantee.

EAN

4250580433828
