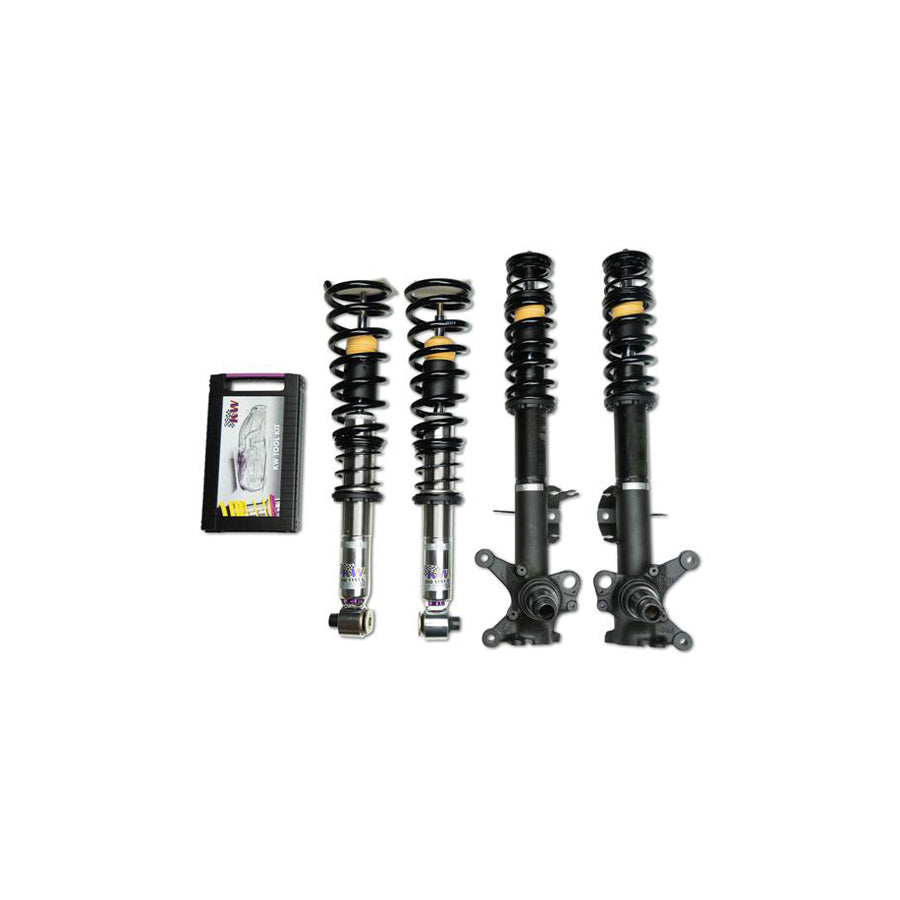

KW 35204200CP BMW E24 Variant 3 Coilover Kit (628csi, 633csi, 635csi, M635csi) (FA struts in exchange)

KW 35204200CP BMW E24 Variant 3 Coilover Kit (628csi, 633csi, 635csi, M635csi) (FA struts in exchange)

Regular price $3,321.05
Sale price $3,321.05
9th Anniversary Badge

Price Match
View full details

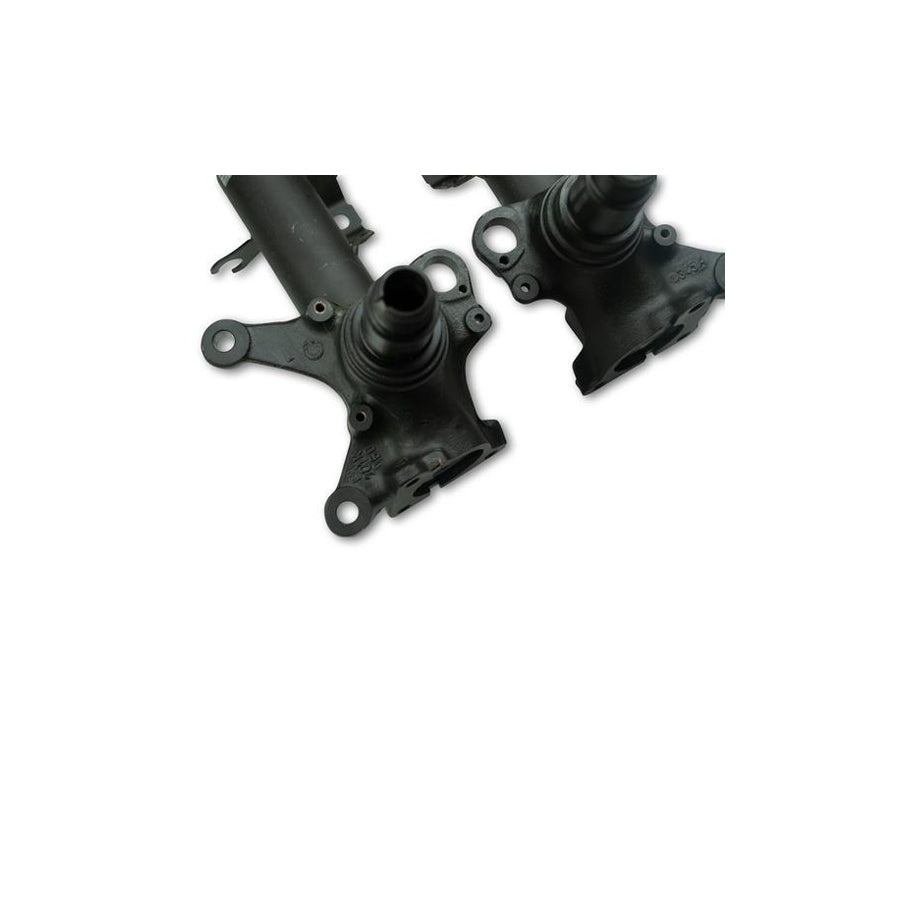

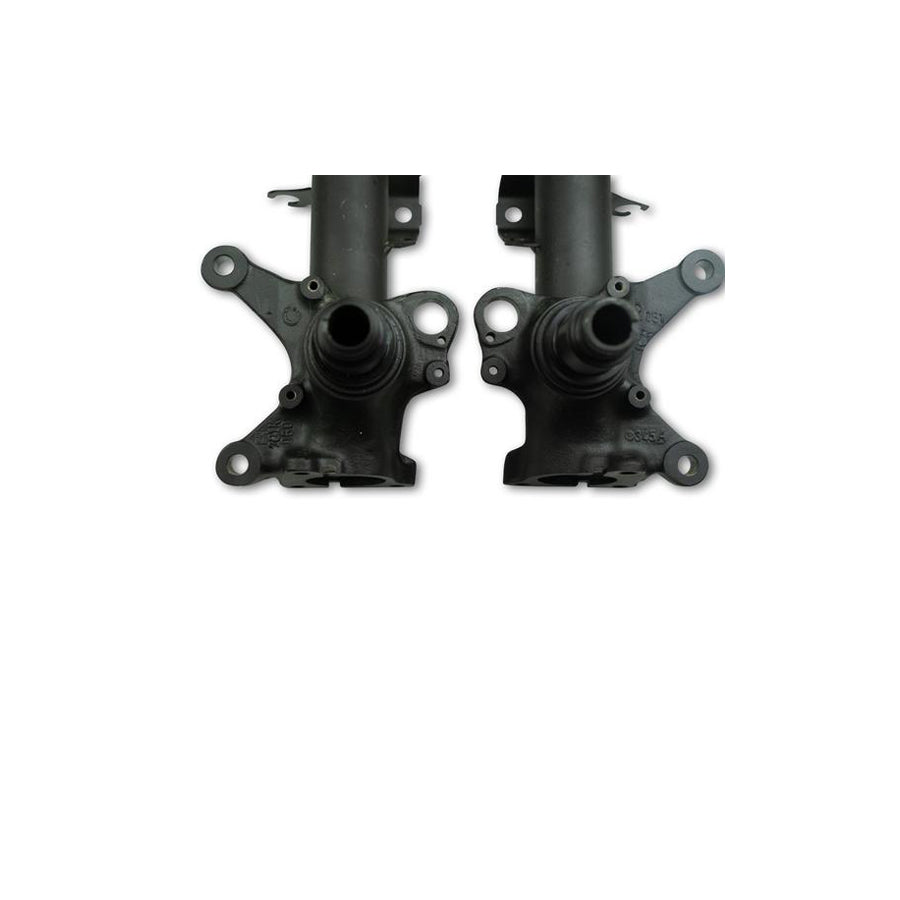

Please Note: The factory BMW E24 Front Axle Struts (without top mounts, bearings, ABS, anything attached to the struts) will need to be sent to us in a reasonable condition (straight, no dents) to be upgraded with KW. Please include the courier tracking after placing your order.



Unlimited individuality for performance & comfort.
Damping forces can be adjustment separately in rebound & compression.
Our engineers have developed a sporty yet harmonious basic setup, as with any KW coilover kit. To be able to guarantee the perfect suspension setup we test on our KW 7-post rig, as well as extensive driving tests on country roads, motorways and even on the Nurburgring Nordschleife. For years, the KW V3 coilover is one of the top aftermarket products and is a benchmark for coilovers. It convinces sports car drivers, tuner, large-and small series manufacturer such as Alpina, MTM, Manthey, Oettinger and many more leading companies in the international automotive industry with its damping characteristics, quality finish and durability.

Advanced technology from motor sport
With the KW V3 coilover you will get much more than just a sporty lowering and excellent driving behaviour on all roads. It is based on our long experience as a suspension manufacturer and supplier for international motor sport, such as the touring car series ADAC GT Masters, FIA GT1, FIA GT3, International GT Open, WTC, VLN and the legendary ADAC Zurich 24h-race Nürburgring.

Similar to our racing coilovers from the KW Racing program, the KW V3 can be adjusted independently in compression and rebound damping. This individual adjustment possibility is much appreciated by sports car manufacturers, tuners and drivers worldwide.

The perfect suspension setup for more driving pleasure
If you have already made your first performance modifications to your vehicle our KW V3 coilover will compliment your upgrades. The patented KW-valve technology for separate adjustment of rebound and compression damping allows you to individually setup your suspension. The adjustable KW bottom valve adjusts the low-speed range of the compression level in twelve clicks.

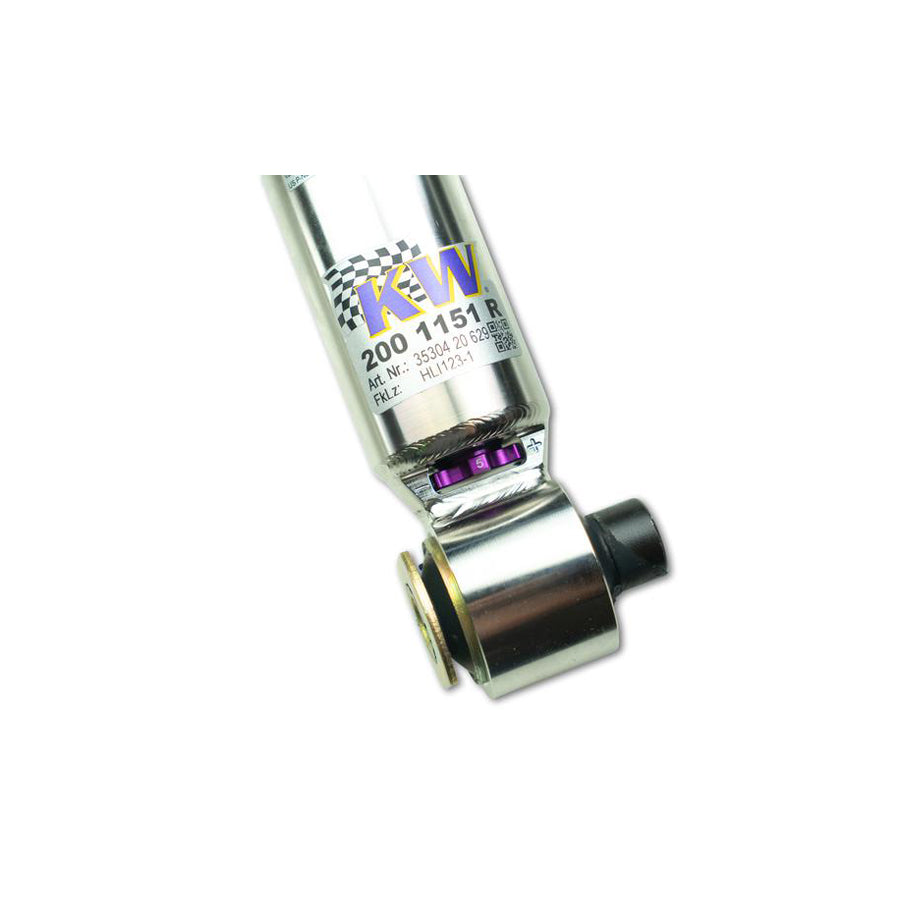

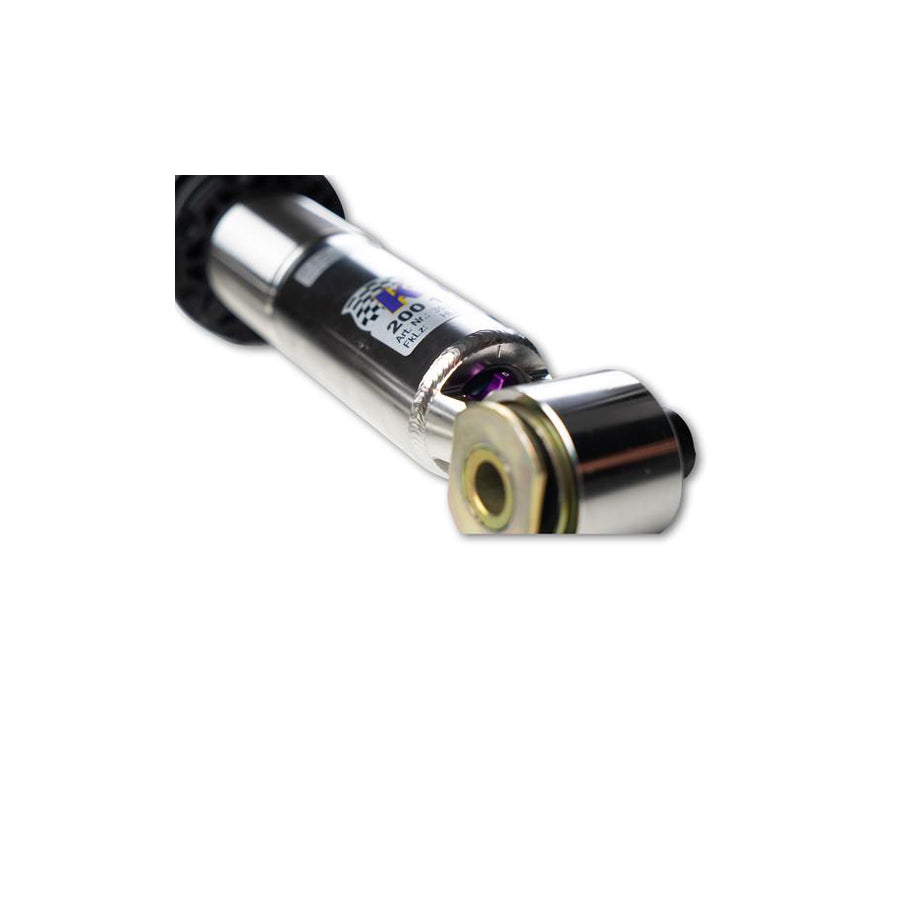

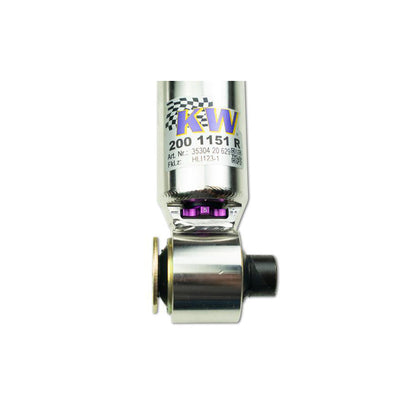

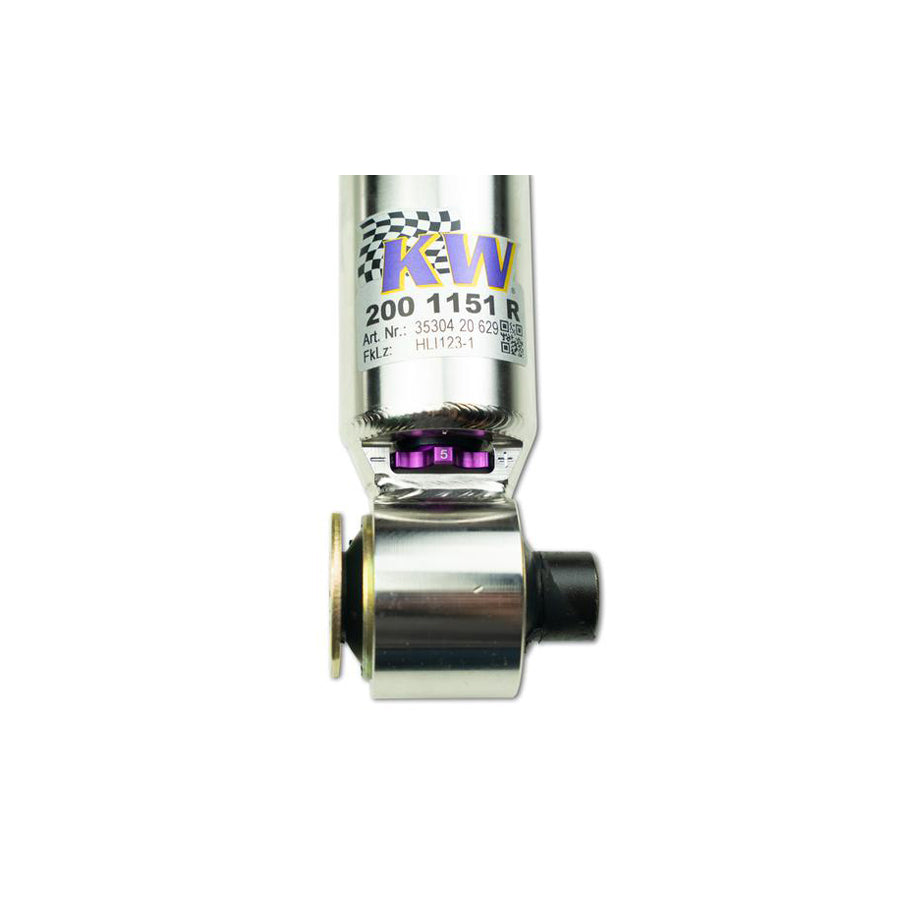

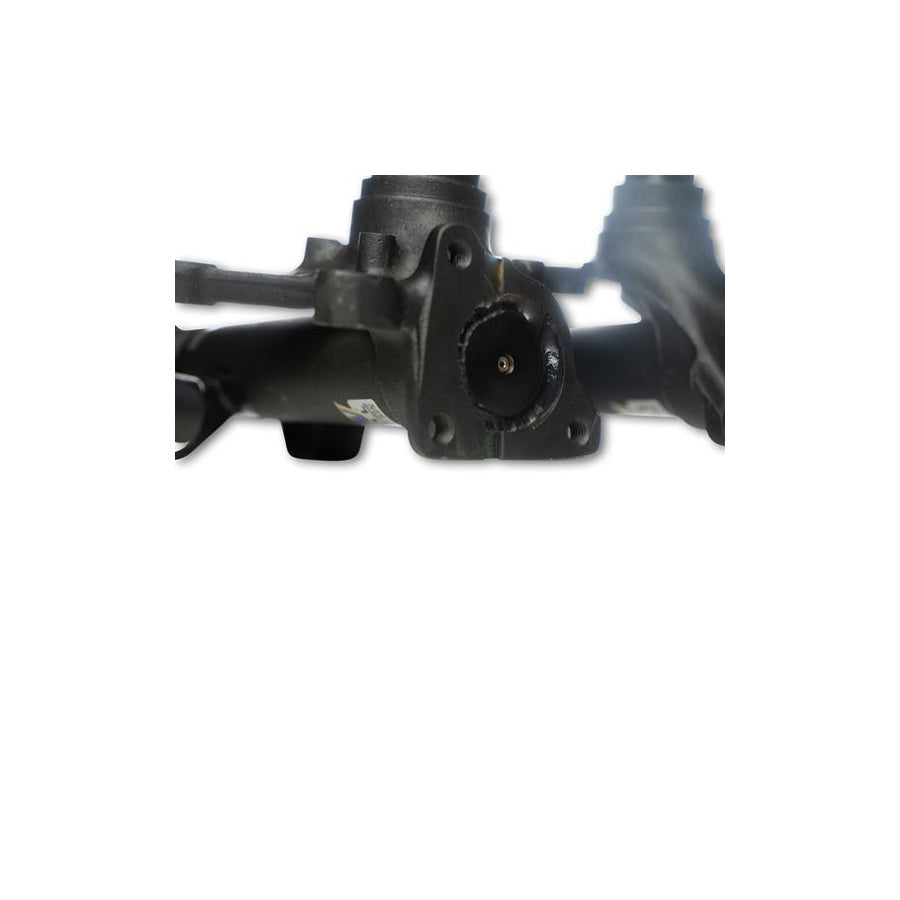

You don’t need any adjusting tools because of the patented compression adjuster at the lower end of the stainless steel housing. The adjustable compression damping with its twelve exact clicks allows you to manually influence body roll, without having to change the spring rate which optimally matches the rebound.

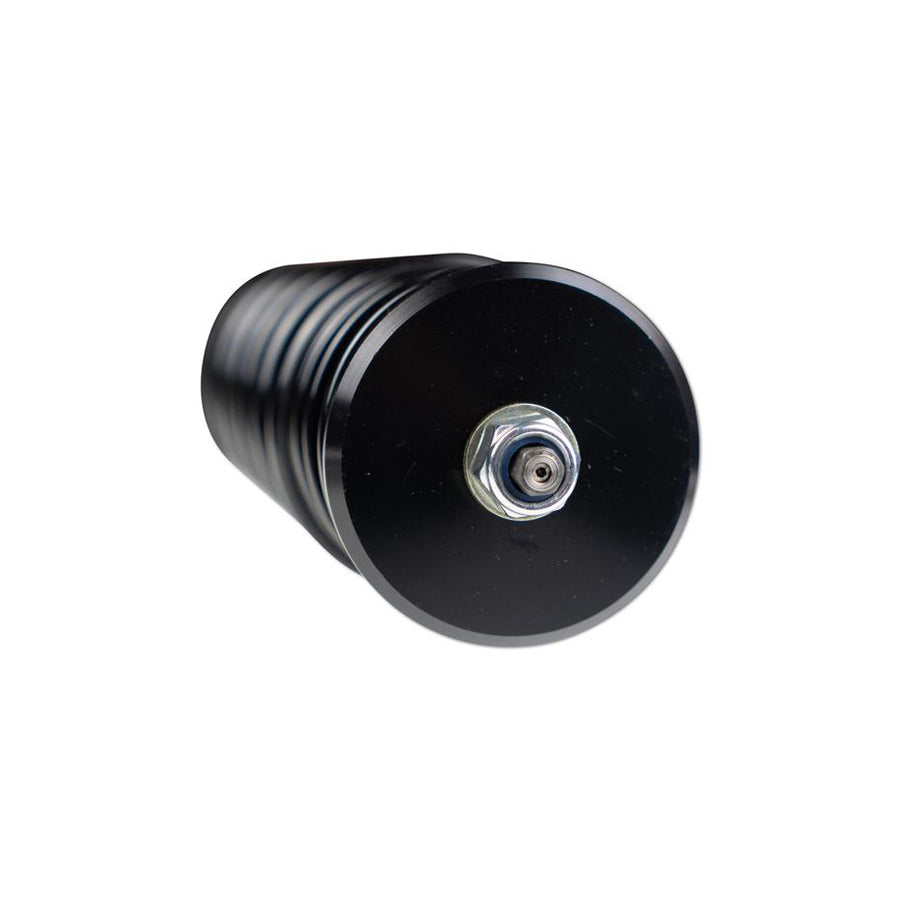

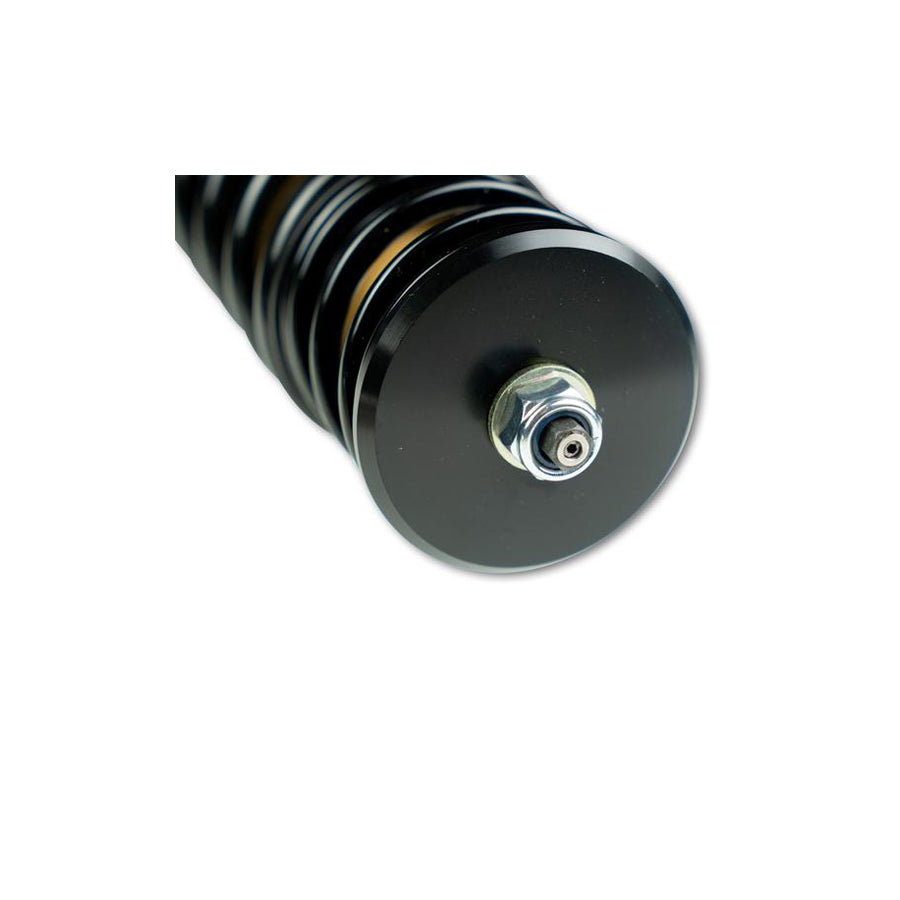

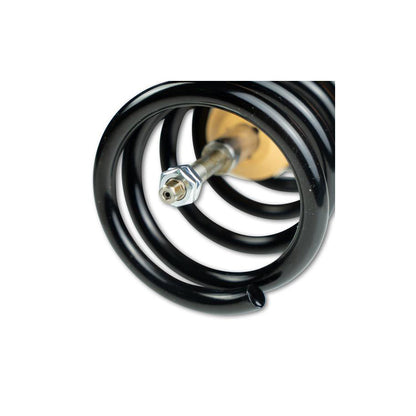

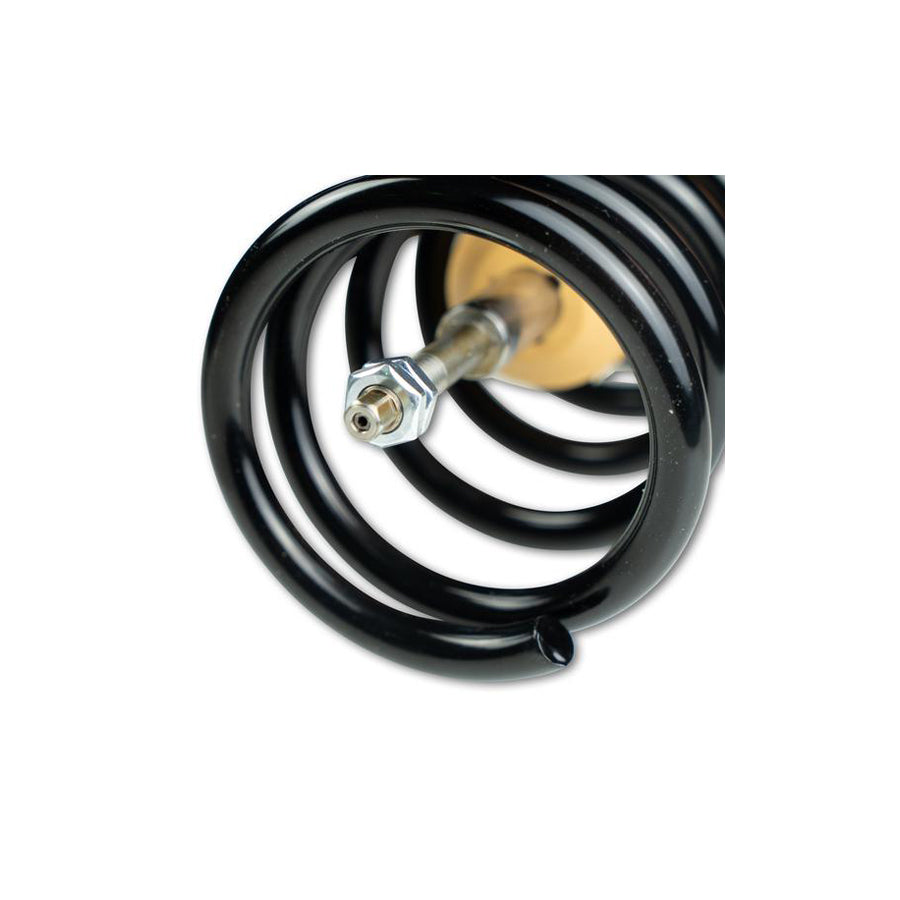

With the individually adjustable rebound setup of the KW V3 you can directly influence the handling and comfort with its precise click adjustment. Depending on the vehicle type, the rebound valves of the KW twin-tube dampers on the upper end of the piston rod will be adjusted via an integrated adjustment wheel or a twist-adjustment wheel which is included in the delivery content.

By increasing the rebound force via the adjustment wheel body movements are reduced. You will have more stability during high speed cornering. If you change for example the wheel / tire combination (approved by the car manufacturer) to larger wheels, then with a KW V3 you will be able to adjust the car's handling perfectly.
Print product description

High quality, individual and durable
The KW V3 kit and every single damper are subject to extensive quality tests during production to meet the high standards of our KW quality management. This is the only way we can meet our expectations to give up to five years warranty on our KW V3 when installed at one of our KW specialist dealer. KW coilover struts made of stainless steel are 100% rust-free and an unlimited life time.

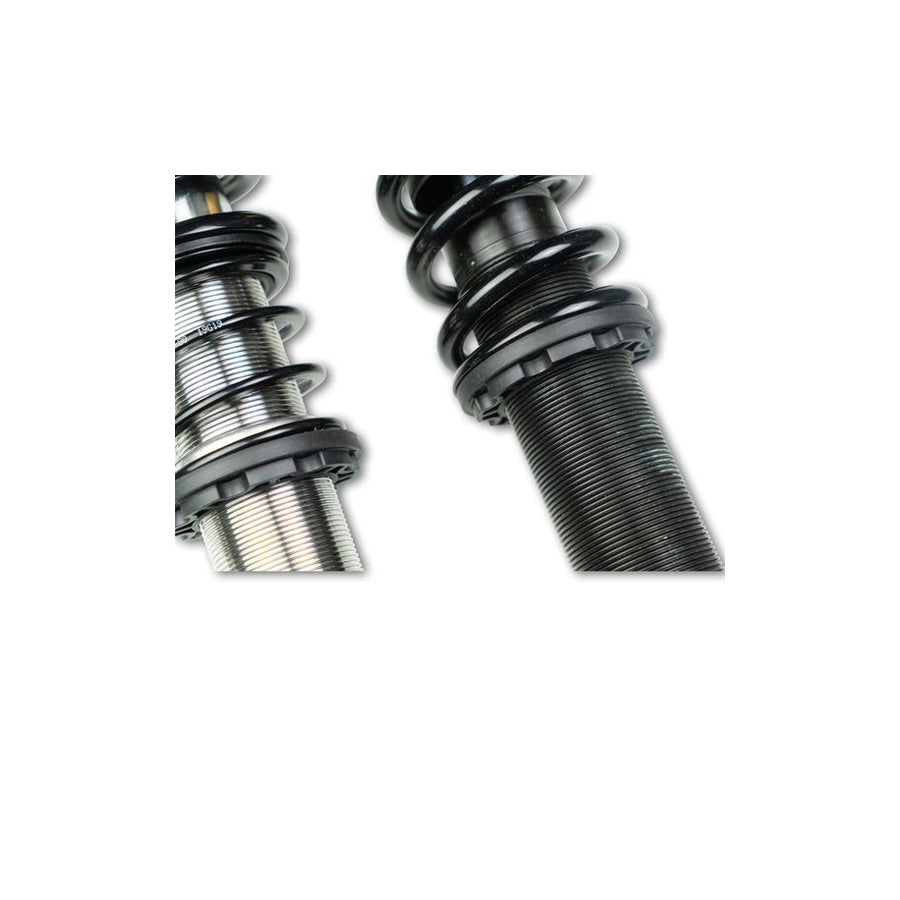

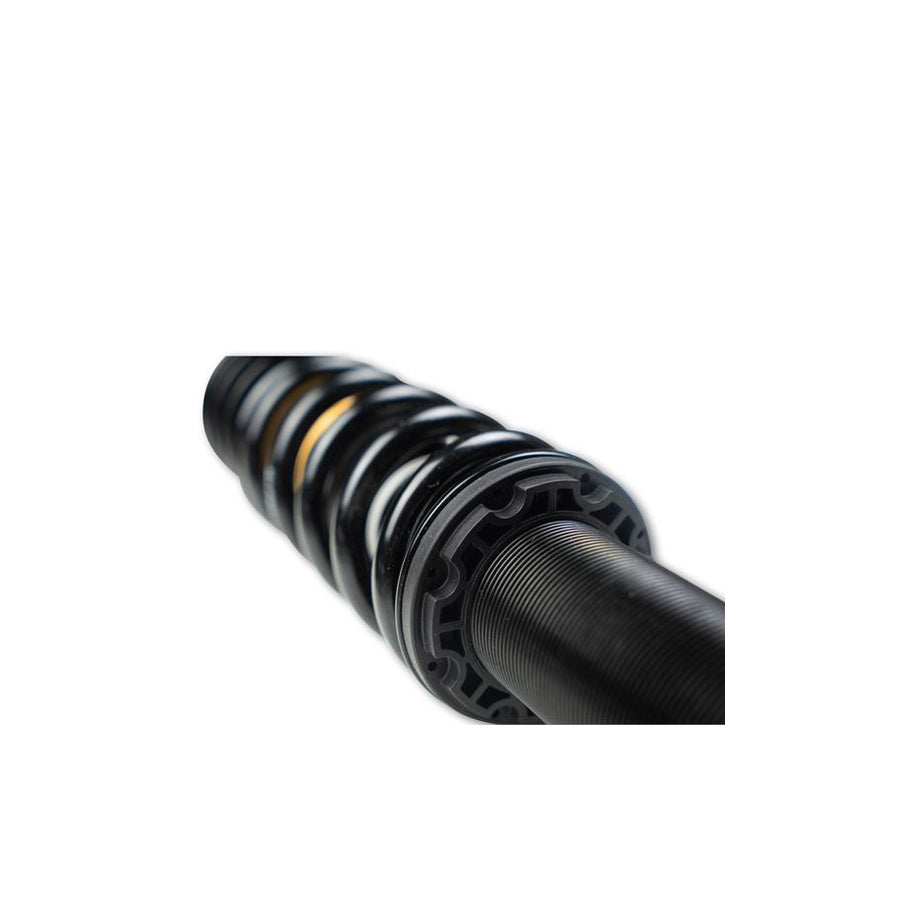

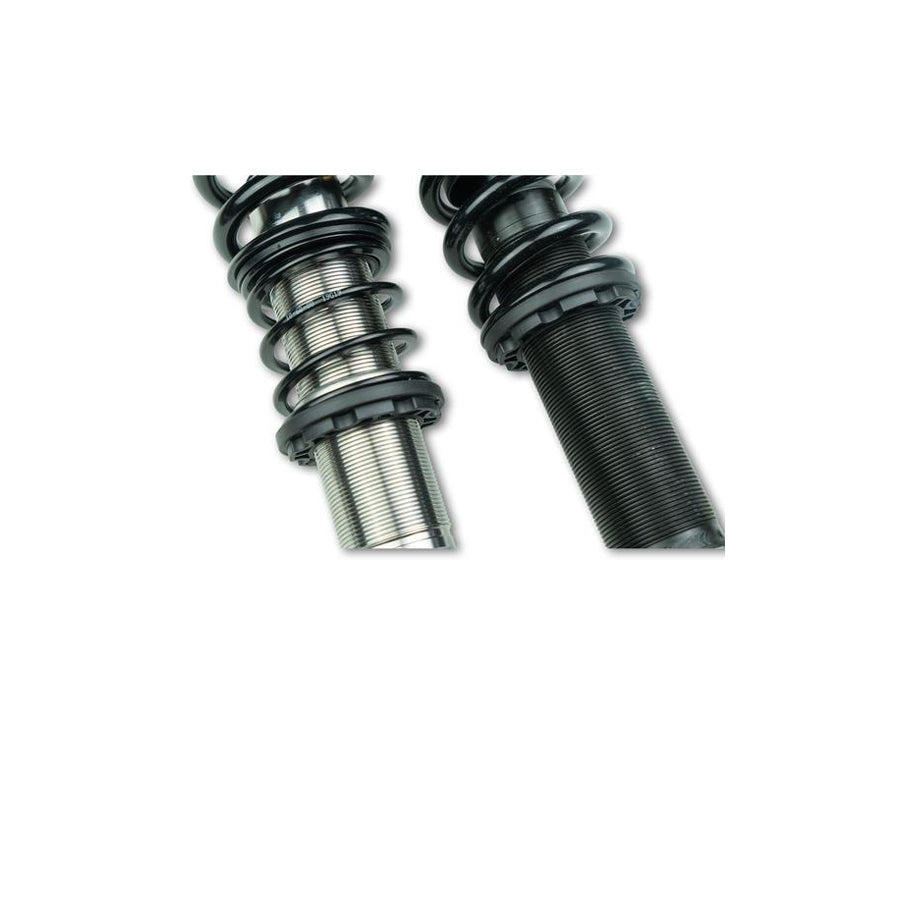

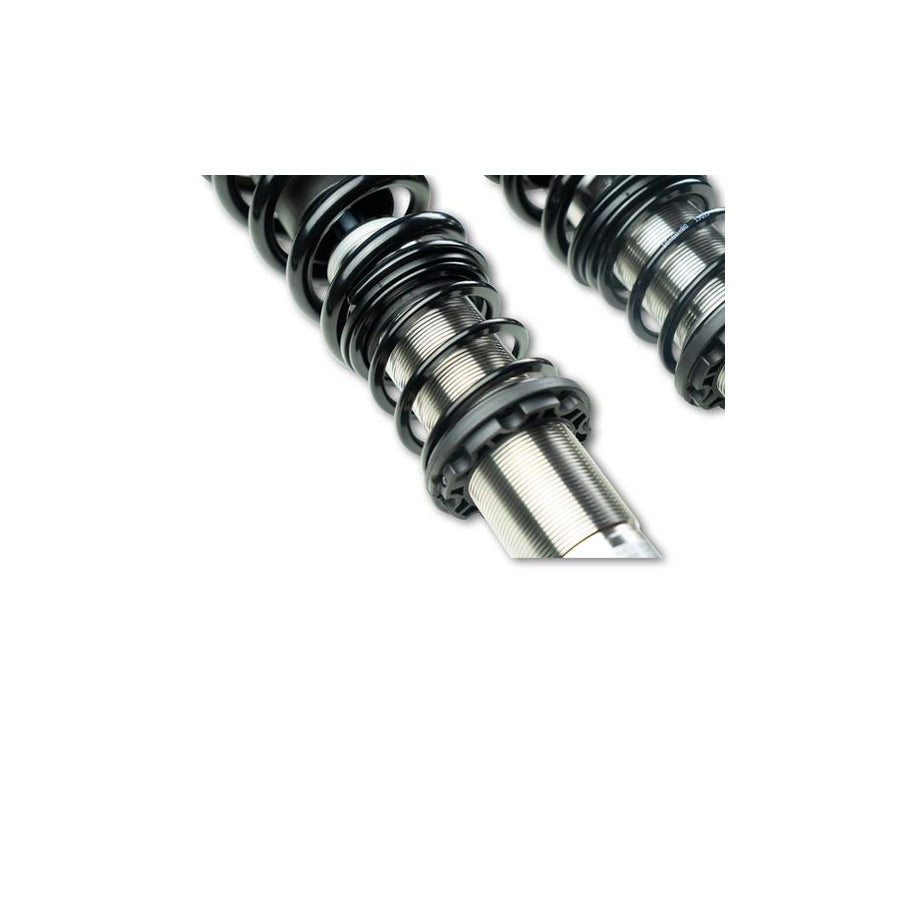

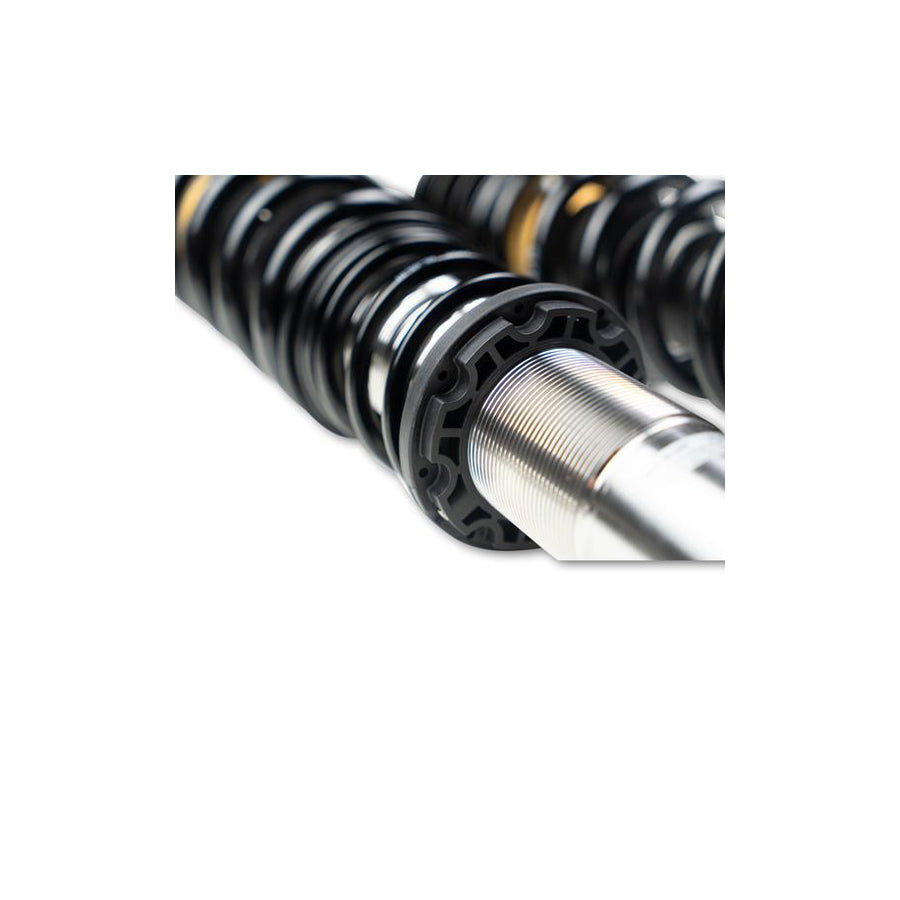

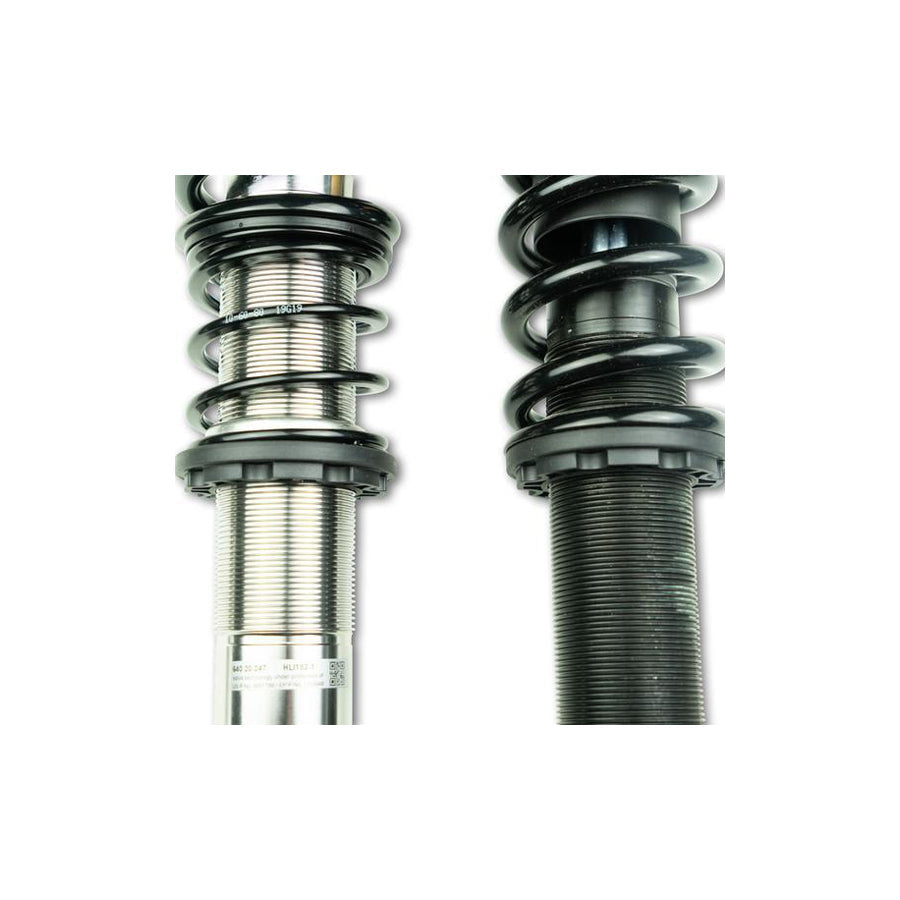

Therefore the operation of the continuous lowering via the dirt-resistant KW trapezoid thread and the KW composite collar is also not affected after years. By the individual lowering with its continuous adjustment range, you can emphasize the sportiness of your vehicle visually. A feature that is very popular in the performance-oriented tuning scene.

- Rebound and compression damping adjustable damper technology
- Stainless steel technology "inox-line"
- Individual, continuous lowering
- tested adjustment range
- High quality components for a long life
- Complete documentation for an easy handling
- Adjustable rebound damping with 16 exact clicks
- Adjustable compression damping with 12 exact clicks
- Unique, independent from each other working damping force adjustment

Setup: The individual adjustable rebound- & compression damping of the KW V3 coilover
The KW V3 coilover kit is the perfect accessory for performance-oriented drivers and tuning enthusiasts who put a great demand on their suspension. The separately rebound and compression damping adjustable dampers with their "well-thought-through" click adjustment allow a perfect setup. So it is easy to influence the steering behaviour, directional stability, tire grip and handling characteristics when driving on the limit.



Front Lowering (mm) : 45 to 60
Rear Lowering (mm) : 40 to 60
Version : V3
Damping adjustment : Rebound and Compression Damping
Material : Galvanized steel
Approval : Part approval (§19.3)
Note (Product) : Raab coilover made by KW



Specifications

Length : 76
Width : 46
Height : 15



    • 6 SERIES
      • 6 Coupe (E24) (10/1975-04/1989)
        • 628csi / 633csi / 635csi / M635csi

Note:

  • Height adjustable on the front and rear axles (threaded strut housings)
  • When using original tires, wheel offset spacers may be required
  • Not for vehicles with automatic self levelling control / air suspension
  • Original struts need to be sent in advance for modification
  • Coilover kits where the strut housings are delivered on exchange basis are only available in galvanized finish
  • Not for cars with electronic damping



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your license plate or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



  • Parts Approval?
  • Installation Instruction? ?| ?



35204200CP


Manufactured by

KW


Warranty

  • Street Coilovers , Variant 1, Variant 2, Variant 3, Street Comfort - Limited Lifetime Warrantee
  • Bushings, Bump stops and Ball Joints - 1 Year
  • Club Sport Coilovers, 2 way Race Coilovers, 3 way Race Coilovers - No warrantee.



EAN

4250580497189
