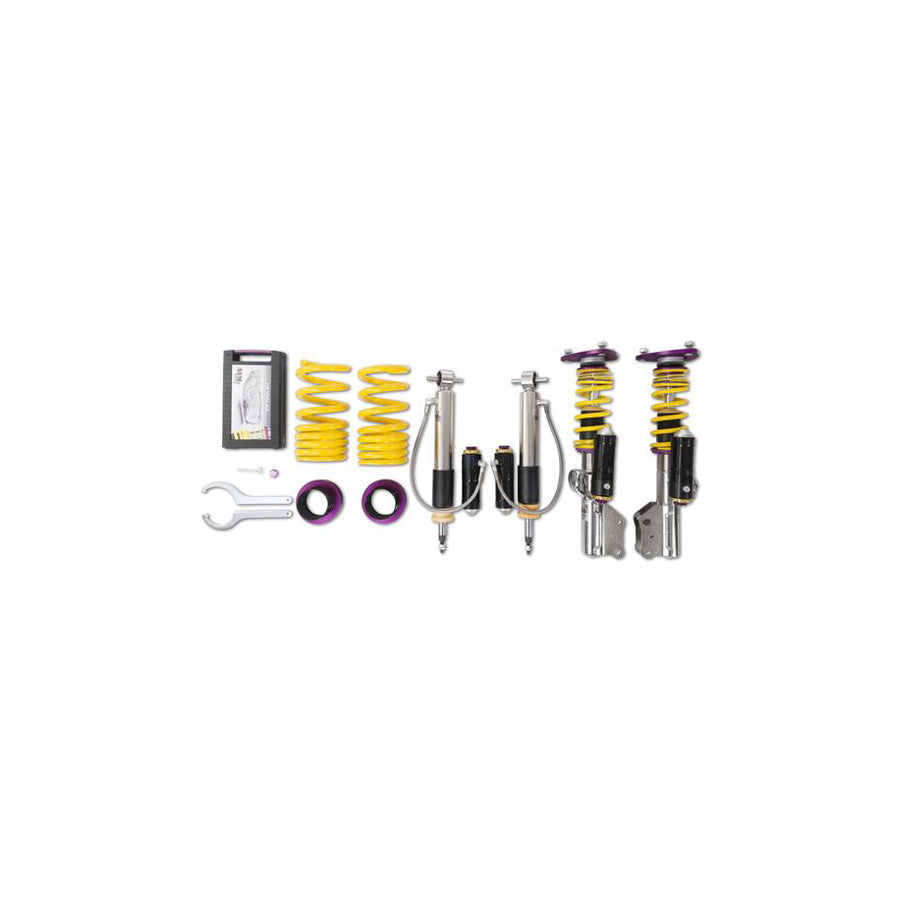

KW 39720225 BMW E46 Clubsport 3-Way Coilover Kit (Inc. M3)

KW 39720225 BMW E46 Clubsport 3-Way Coilover Kit (Inc. M3)

Regular price $7,020.96
Sale price $7,020.96
9th Anniversary Badge
FREE SHIPPING

Price Match

Available on stock order

Learn more on stock order delivery.

In Stock

Receive your order by tomorrow if ordered within
00 hours
00 mins
00s.

Get It By

Receive your order tomorrow. Subject to availability.

Collect 0 points

Purchasing this product will earn you 0 loyalty points worth $0.00 USD.

Price Match Guarantee

If you find a lower price at an eligible USA retailer website, we will match it.

View full details

The KW Clubsport coilovers utilize the uncompromising transfer of technology from the world of motorsports to track day/street driving.
The KW Clubsport coilovers combine KW's high-end racing technology with maintenance-free KW OEM components and part certificate.

This will provide you the ideal product to take full potential of your sports car during track days, sports car driving clinics, enthusiast drives on Grand Prix circuits and on tracks such as the Nürburgring Nordschleife.

Designed on the toughest race track in the world: The Nurburgring Nordschleife
The KW Clubsport coilovers provide the ability to adjust for different track surfaces, sharp turns and abrupt elevation changes. The KW Clubsport is in its home environment on the famous twists and turns of the 20.8 km long Nürburgring Nordschleife circuit.

As a supporting suspension manufacturer to numerous different racing series. KW had claimed 6 ADAC Zurich 24-hour victories within 10 years at the famous Nürburgring circuit and the ADAC GT Masters 2011 Championship. More then 70 race teams are equipped with KW coilover systems in the VLN Endurance Championship series. These race teams rely on KW's racing expertise and experience for their vehicle setup. This information is mirrored in the development of the KW Clubsport coilover systems.

The KW V3 Clubsports and KW V4 Clubsport provides the user numerous adjustment settings. This allows to user to dial the suspension setup to his/hers driving style and to adjust or match the tire/wheel setup of the vehicle.

Rebound and compression dampening is independently adjustable by hand via the integrated click adjusters. Adjustable top mounts are optional on certain applications.

KW V4 Clubsport coilovers
Using the Nordschleife as it's testing grounds and the 7-post rig, KW developed it's KW V4 Clubsport coilover kit. Wheel loads, vehicle weight and chassis reinforcements (increased body stiffness) can all be taken into consideration with adjustment capabilities of the KW V4 Clubsport. Similar to KW V4 Racing coilovers, low-speed and high-speed compression adjustment is done via KW's patented two-valve control on the reservoir.

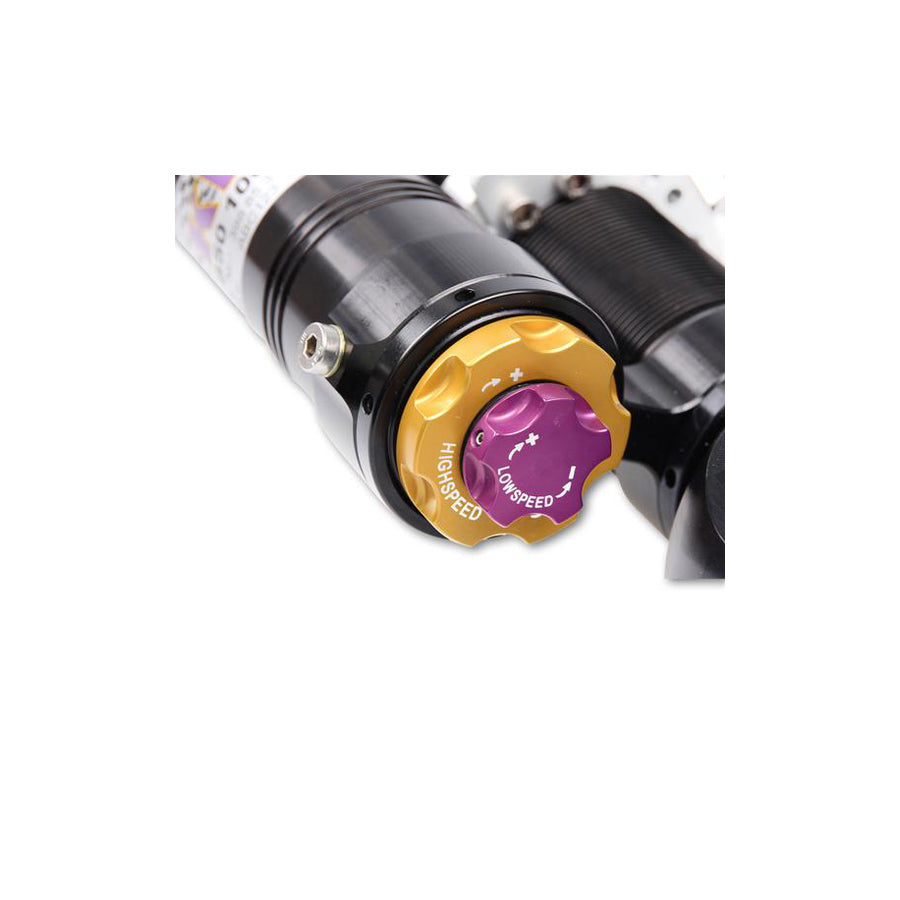

By hand, you can vary the low-speed compression damping with six precise clicks at the purple adjustment wheel. The gold adjustment wheel allows the user to change the high-speed compression damping with 14 precise clicks. Rebound adjust is provided with 16 adjustable clicks providing a noticeable change the rebound adjustment setting. A reduction in rebound forces provides a more comfortable ride quality suitable for highway driving.

- 16 precise clicks in rebound adjustment dampening
- adjustable compression damping with 6 clicks in low-speed range and 14 precise clicks in the high-speed range
- continuous lowering
- tested adjustment range
- high-quality components for long-term durability

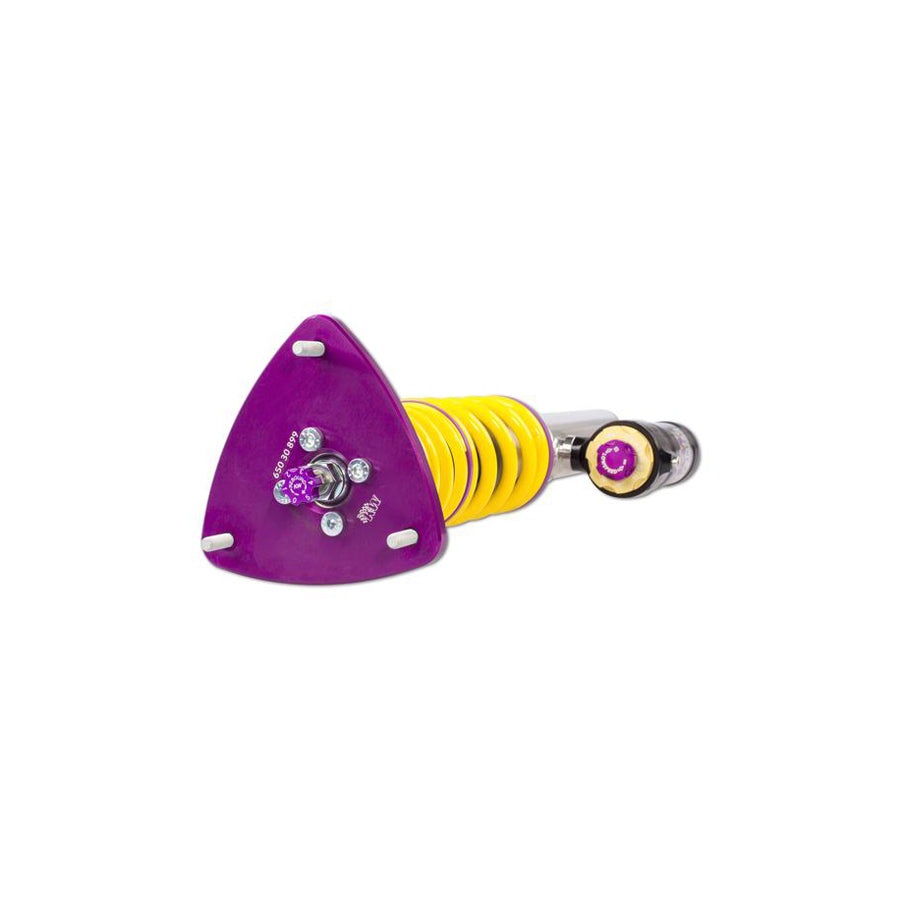

- independent damping force adjustability with aluminum spherical bearing top mounts available

Setup: Application and damper settings
KW V4 Clubsport coilovers provide the flexibility to quickly dial their vehicle setup for various race tracks events and circuits.



Front Lowering (mm) : 20 to 40
Rear Lowering (mm) : 20 to 40
Version : V4 Clubsport
Damping adjustment : Rebound and Compression Damping
Material : Stainless steel
Approval : Part approval (§19.3)



Specifications

Length : 76
Width : 46
Height : 15



  • 3 SERIES
    • 3 Convertible (E46) (04/2000-12/2007)
      • M3

    • 3 Coupe (E46) (12/1998-07/2006)
      • M3 / M3 CSL

Note:

  • Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
  • Top mounts can also be combined with a KW coilover kit. Therefore some additionally parts have to be ordered (springs, intermediate rings. Please ask our sales department. , )
  • Clubsport coilover with top mount: only with front axle top mount available



To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your license plate or the last 7 digits of your VIN. Simply enter your car details prior to checkout.



  • Parts Approval?
  • Installation Instruction?
  • Adjustment Manual?



39720225


Manufactured by

KW


Warranty

  • Street Coilovers , Variant 1, Variant 2, Variant 3, Street Comfort - Limited Lifetime Warrantee
  • Bushings, Bump stops and Ball Joints - 1 Year
  • Club Sport Coilovers, 2 way Race Coilovers, 3 way Race Coilovers - No warrantee.



EAN

4250173398589
