Mobil

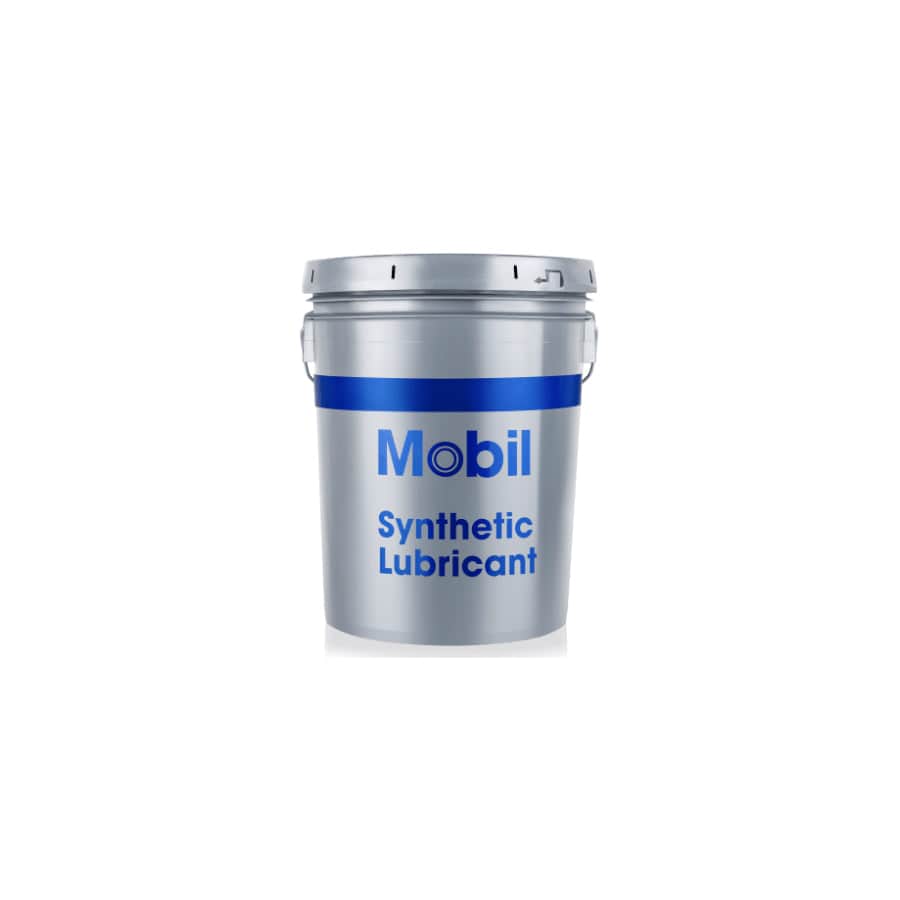

Mobilith SHC 1000SPL PAIL 16kg

Mobilith SHC 1000SPL PAIL 16kg

Regular price $363.68
Sale price $363.68
Anniversary

Price Match
View full details
  • Mobilith SHC Series greases are superior performance products designed for a wide variety of applications at extremes of temperature.
  • They combine the unique features of synthetic base fluids with those of a high quality lithium complex thickener.
  • The wax-free nature of synthetic fluids and the low coefficient of traction (compared with mineral oils), provide excellent low temperature pumpability and very low starting and running torque.
  • These products offer the potential for energy savings and can reduce operating temperatures in the load zone of spherical roller and ball bearings.
  • The lithium complex thickener contributes excellent adhesion, structural stability and resistance to water.
  • The greases have a high level of chemical stability and are formulated with special additive combinations to provide excellent protection against wear, rust and corrosion, and providing operating viscosity at high and low temperatures.



Specification and Approvals

Property

007

100

1000 SPECIAL

1500

220

221

460

Grade

NLGI 00

NLGI 2

NLGI 2

NLGI 1.5

NLGI 2

NLGI 1

NLGI 1.5

Thickener Type

Lithium Complex

Lithium Complex

Lithium Complex

Lithium Complex

Lithium Complex

Lithium Complex

Lithium Complex

Color, Visual

Red

Red

Gray-Black

Red

Red

Light Tan

Red

Copper Strip Corrosion, 24 h, 100 C, Rating, ASTM D4048

1B

1B

1B

1B

1B

1B

Corrosion Preventive Properties, Rating, ASTM D1743

Pass

Pass

Pass

Pass

Pass

Dropping Point, °C, ASTM D2265

265

265

265

265

265

265

Four-Ball Extreme Pressure Test, Weld Point, kgf, ASTM D2596

250

250

620

250

250

250

250

Four-Ball Wear Test, Scar Diameter, mm, ASTM D2266

0.5

0.5

0.5

0.5

0.5

0.5

0.5

Oil Separation, 0.25 psi, 24 h @ 25 C, mass%, ASTM D1742

1

<1

2

3

Penetration, 60X, 0.1 mm, ASTM D217

415

280

280

305

280

325

305

SKF Emcor Rust Test, 10% Synthetic Sea Water, ASTM D6138

0 , 1

0 , 1

0 , 1

0 , 1

SKF Emcor Rust Test, Acidic Water, ASTM D6138

0 , 1

0 , 1

0 , 1

0 , 1

SKF Emcor Rust Test, Distilled Water, ASTM D6138

0 , 0

0 , 0

0 , 0

0 , 0

0 , 0

0 , 0

0 , 0

Viscosity @ 100 C, Base Oil, mm2/s, ASTM D445

55.6

16.3

83.7

149

30.3

30.3

55.6

Viscosity @ 40 C, Base Oil, mm2/s, ASTM D445

460

100

1000

1500

220

220

460

Viscosity Index, ASTM D2270

188

175

164

212

179

179

188

Water Washout, Loss @ 79 C, wt%, ASTM D1264

6

1

6

1.5

7



Applications

Application Considerations: While Mobilith SHC Series greases are compatible with most mineral oil based products, admixture may detract from their performance. Consequently it is recommended that before changing a system to one of the Mobilith SHC Series, it should be thoroughly cleaned out to achieve the maximum performance benefits. While the Mobilith SHC Series greases share many performance benefits, their applications are best described in terms of each product grade:

Mobilith SHC 100 is an antiwear and extreme pressure grease primarily recommended for higher speed applications such as electric motors, where reduced friction, low wear and long service life are required. It is an NLGI 2 Grade / ISO VG 100 grease with a synthetic base fluid. Its operating temperature range is -40º C* to 150º C.

Mobilith SHC 220 is a multi-purpose, NLGI 2 extreme pressure grease recommended for heavy-duty automotive and industrial applications. It uses an ISO VG 220 synthetic base fluid. Mobilith SHC 220 has a recommended operating temperature range of -40º C* to 150º C.

Mobilith SHC 221 is a multi-purpose, extreme pressure grease recommended for heavy-duty automotive and industrial applications, particularly where centralized grease systems are utilized. It uses an ISO VG 220 synthetic base fluid. Mobilith SHC 221 has a recommended operating temperature range of -40º C to 150º C.

Mobilith SHC 460 is an NLGI 1.5 Grade grease with ISO VG 460 synthetic base fluid and is an extreme pressure grease recommended for tough industrial and marine applications. It provides outstanding bearing protection under heavy loads at low-to-moderate speeds and in applications where water resistance is a critical factor. Mobilith SHC 460 has demonstrated outstanding performance in steel mills, paper mills and marine applications. The recommended operating temperature range is -30º C* to 150ºC.

Mobilith SHC 1000 Special is an NLGI 2 Grade grease with ISO VG 1000 synthetic base fluid and strongly fortified with solid lubricants including 11% graphite and 1% molybdenum disulphide for maximum protection of plain or rolling element bearings operating under boundary lubrication regimes. This product is designed to extend bearing life under conditions of extremely slow speeds, sliding contacts, and high temperatures. Mobilith SHC 1000 Special has a recommended operating temperature of -30°C* to 150 °C with appropriate relubrication intervals.

Mobilith SHC 1500 is an NLGI 1.5 Grade / ISO VG 1500 grease with a synthetic base fluid. It is intended for use in plain and rolling element bearings operating at extremely slow speeds, under heavy loads and high temperatures. Mobilith SHC 1500 has a recommended operating temperature range of -30 ºC* to 150 ºC with appropriate relubrication intervals. Continuous lubrication with Mobilith SHC 1500 has been very effective in prolonging bearing life in a severe roll press application. Mobilith SHC 1500 has also provided excellent performance in rotary kiln roller bearings and in slag transfer rail car bearings.

Mobilith SHC 007 is an NLGI 00 Grade / ISO VG 460 grease with a synthetic base fluid; it has a recommended operating temperature range of -50º C to 150 º C with appropriate relubrication intervals. Its primary uses are in grease filled industrial gear cases subject to high temperatures, where conventional semi fluid greases will not provide acceptable lubricant life and in non-driven heavy-duty truck trailer wheel hubs.

*Low temperature claims based on ASTM D 1478 results vs. maximum limits of 10,000 / 1000 gcm @ startup and 1 hour respectively.
