LOW BACK CAR SEAT WITHOUT HEADREST, FOR PERFORMANCE AND TRACK DAY CARS.

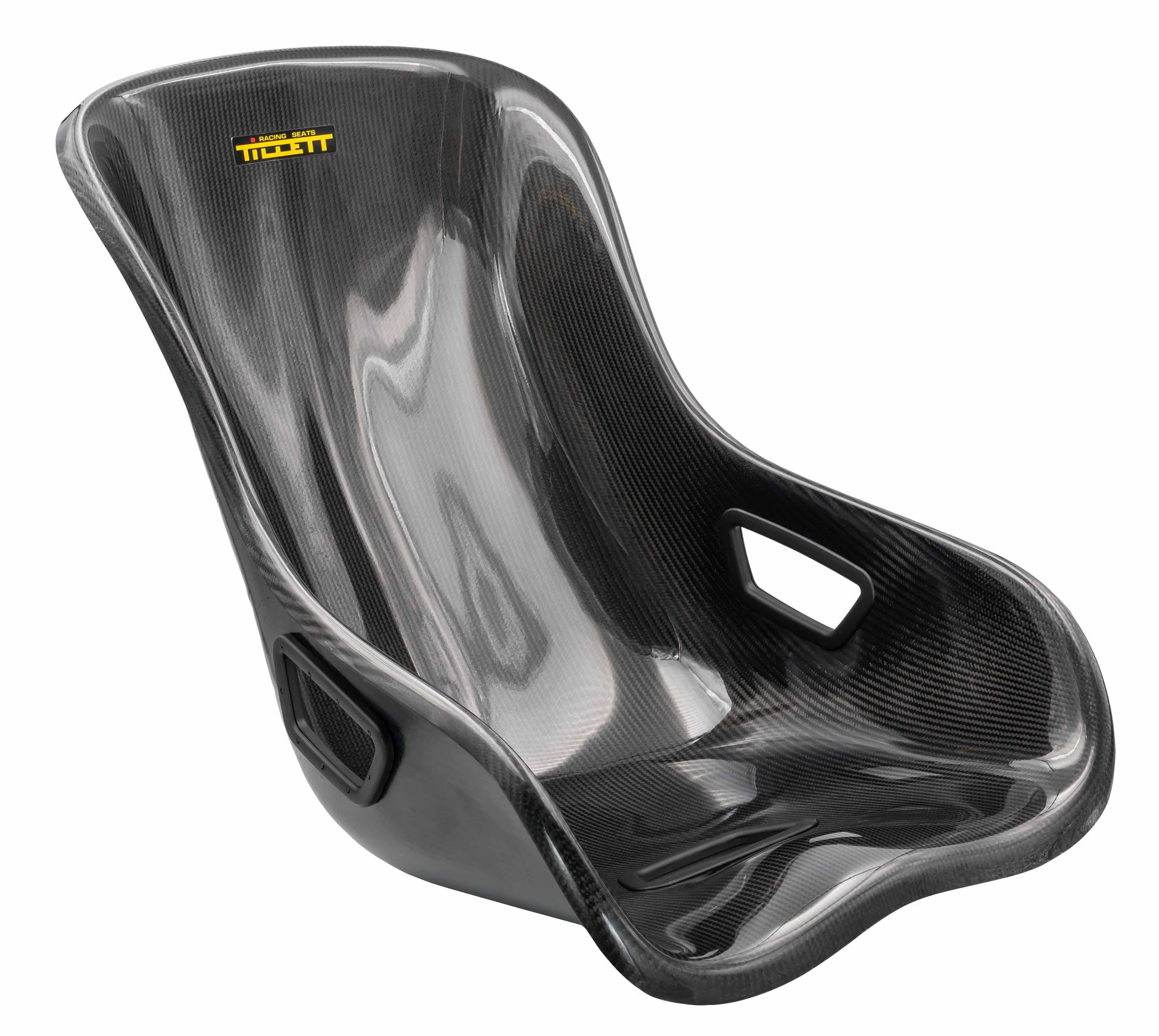

The low back W1i Tillett car seat is internally the same shape as our standard B6 but without the headrest. This light and compact seat can accommodate a driver up to approximately 100 kg with a 36 inch jeans waist size. There is a choice of a carbon or black GRP front finish and two specifications of edge cut in the leg support area.

The W1i-40 version has a trimmed edge to allow fitment between the gearbox tunnel and the door sill of narrow vehicles, such as a Lotus 7 replica. We call this the "edges off" model.

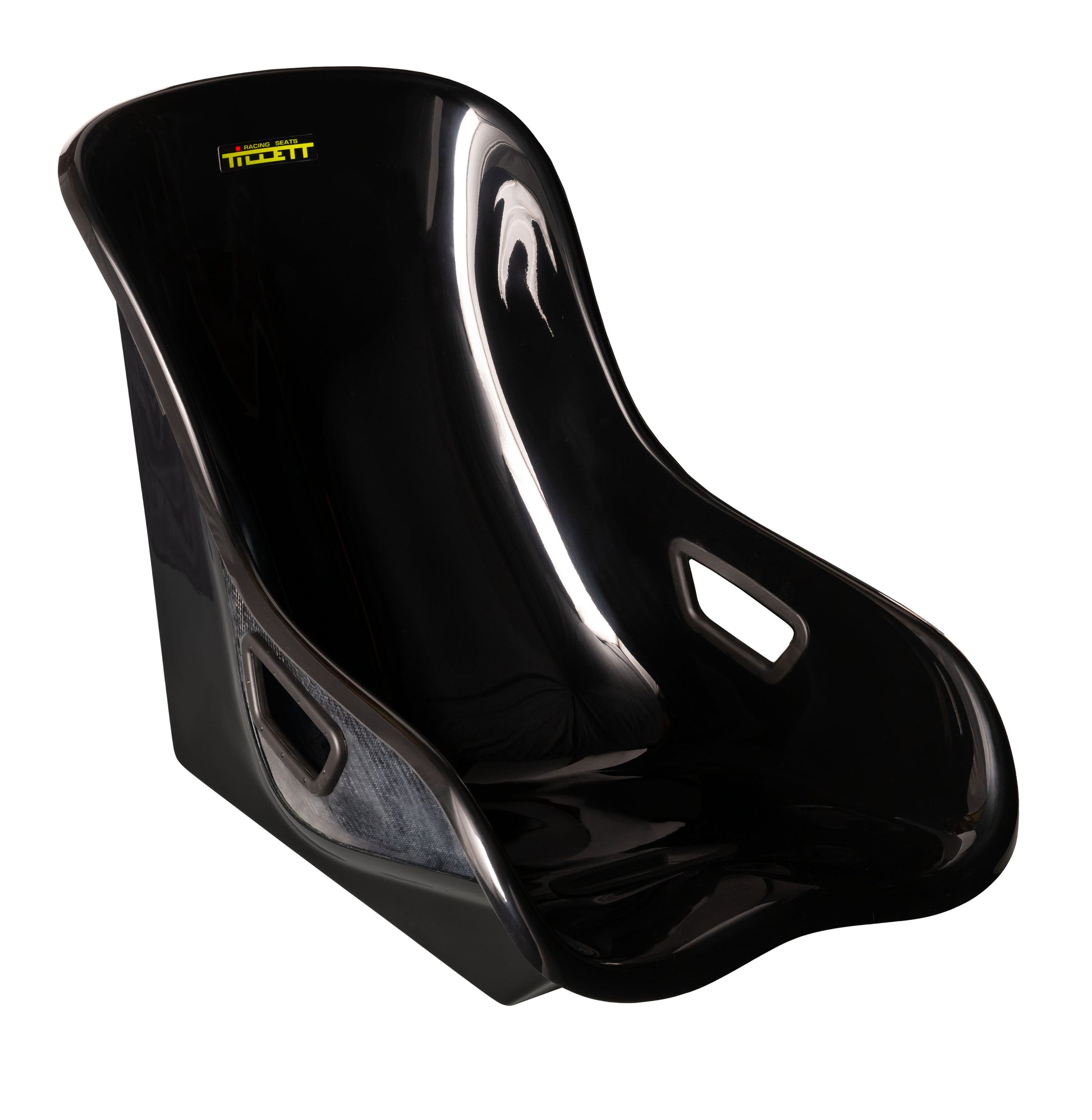

The W1i-44 has the rolled edge left on "edges on" to give a more aesthetically pleasing look to the edge of the seat and is advised if you have the room.

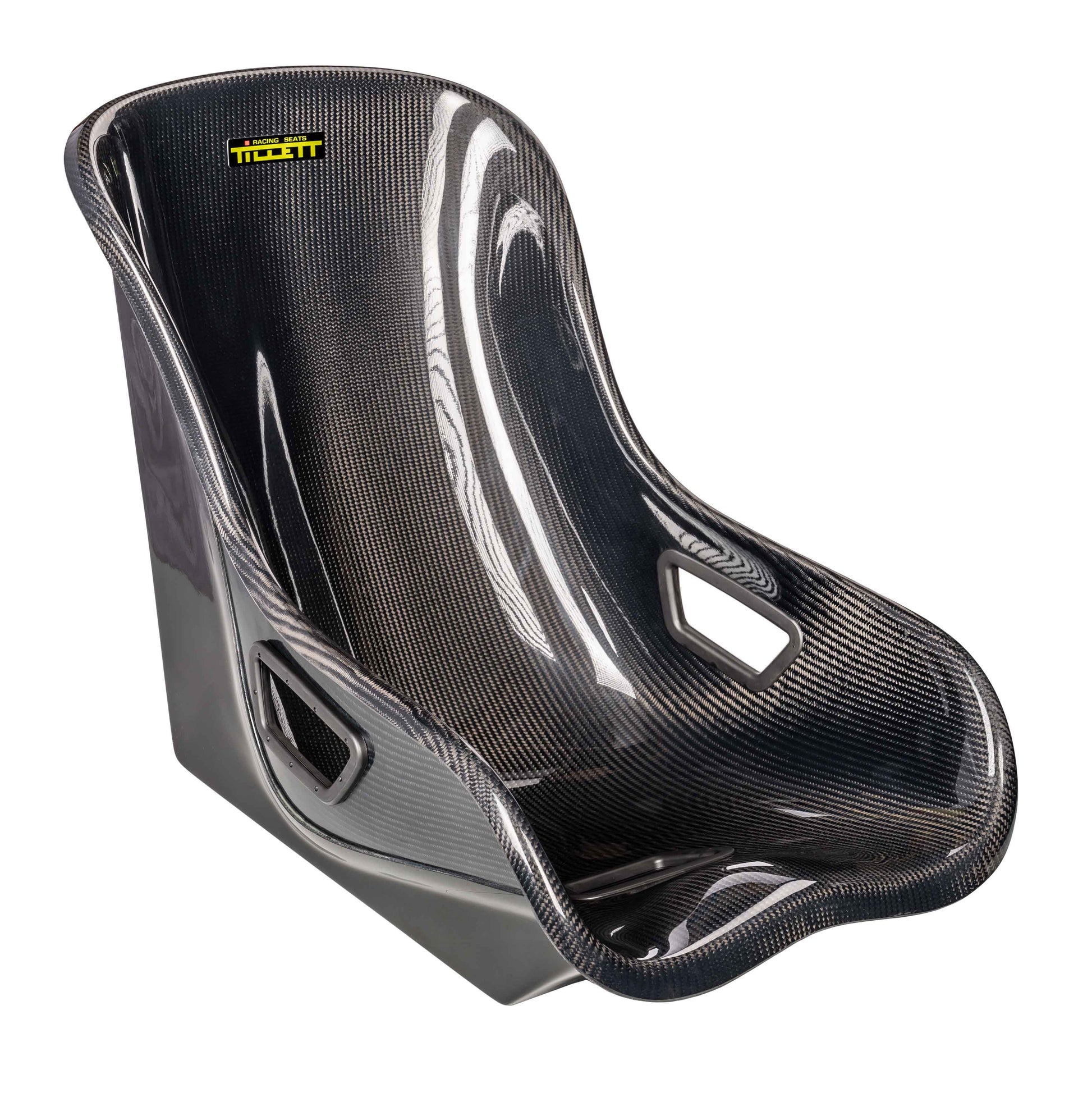

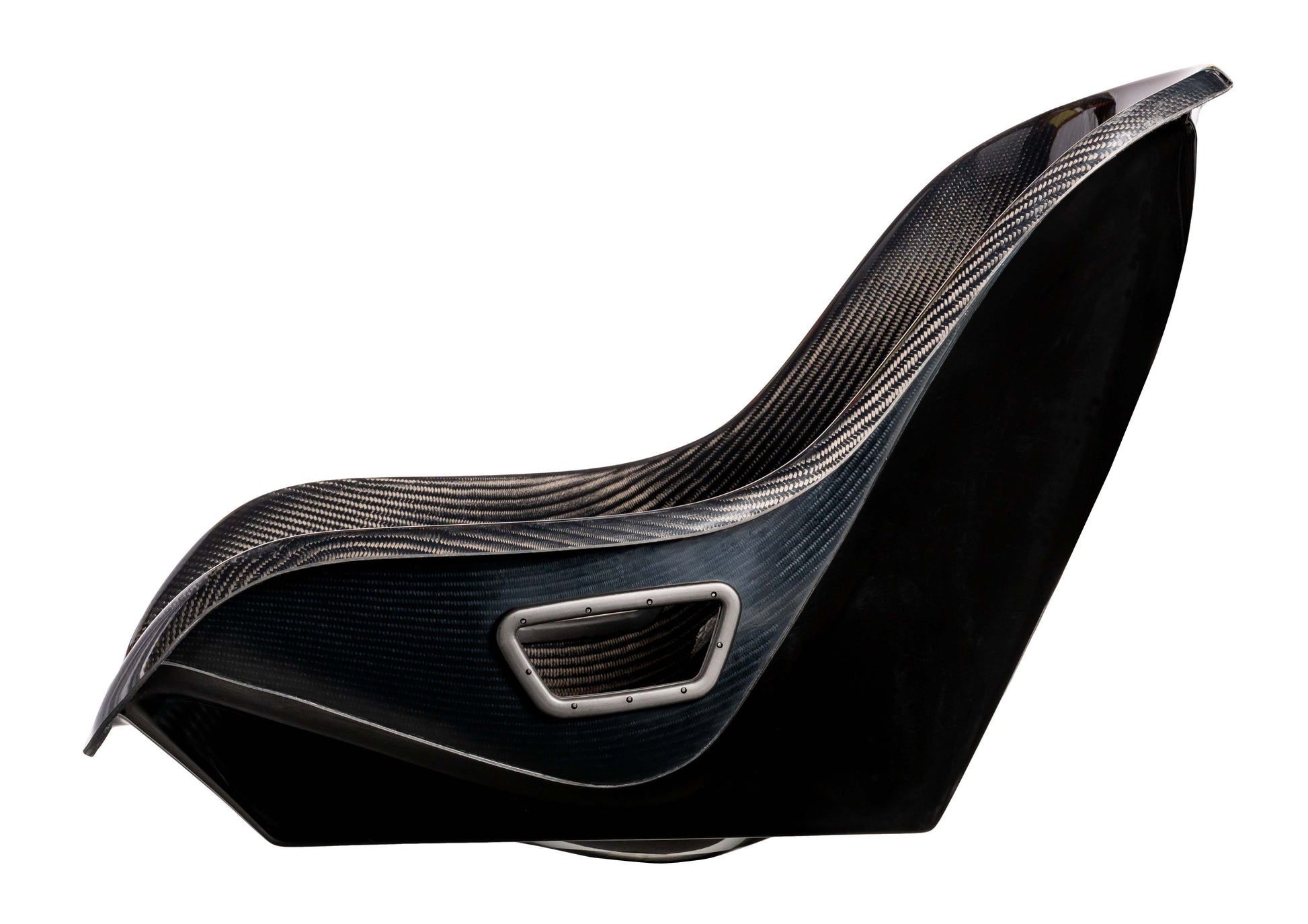

The W1i is also available as a single skin shell, or with a floor mountable backframe. The backframe consists of a second composite moulding bonded to the front skin, making the W1i a fully self-supporting rigid structure. Its four M8 embedded fittings can be in the bottom or the side of the backframe.

"Bottom mounts" allow it to mount directly to the floor using a spacer, or on top of the Tillett seat adjustment runners using the TK5 fitting kit.

With the side mount option, it is possible to use the same 2° race brackets as used by the FIA B6 and B7 seats. The weight of a W1i with the backframe is 3.5 kg and 1.9 kg without.

Low back W models are most suitable when a headrest is not practical, maybe for an application where there is already a headrest support in existence. The W1i shape is often suited to Formula Student university projects.

40cm Rolled Edges Cut Off - Single skin shell 40 cm wide at critical point between the gearbox tunnel and door sill. No headrest on W1i seats - This seat needs special brackets made to fit each vehicle - "rolled edges cut off".

40cm Rolled Edges Cut Off with Backframe - 40 cm wide at critical point between the gearbox tunnel and door sill. No headrest on W1i seats - Includes self supporting rear frame with bottom mountings - "rolled edges cut off".

44cm Rolled Edges On - Single skin shell 44 cm wide at critical point between the gearbox tunnel and door sill. No headrest on W1i seats - This seat needs special brackets made to fit each vehicle.

44cm Rolled Edges On with Backframe - 44 cm wide at critical point between the gearbox tunnel and door sill. No headrest on W1i seats - Includes self supporting rear frame with bottom mountings - "rolled edges cut off".

• The low back W1i Tillett car seat is internally the same shape as the standard B6 but without the headrest.
• Carefully sculpted and designed to be the most compact of all race car seats, lowering the driving position and placing the seat where other seats simply will not fit. A great option for a performance car that has a very low roof.
• Body mirroring shape gives the driver full support, unhindered steering control and maintains ultimate comfort over long periods of time.
• The seat can accommodate a driver up to approximately 100kg with a 36 inch jeans waist size.
• Available to order with a backframe for extra support and fixing options. With this recommended additional feature, you can have a side mount (SM) or base mount(BM) version of the seat. Weight increases to approximately 3.6kg when the backframe is included. See product options.
• Two edge cut options for reducing external widths across the leg area, "edges on" 44cm or "edges off" at 40cm. See images for visual understanding.
• Two finishes available, gloss carbon/GRP & GRP.
• Manufactured at the Tillett factory using their specialist moulding system, creating strength and accuracy.
• Does not require padding, allowing ultimate feedback from the car, essential for a competition seat. Additionally, zero water absorption from any foam covering, makes the seat extremely practical for an open top race car.
• Additional covered panel options available if required. Panel set will add approximately 1kg.
• All seat panels are customisable, contact the office directly for further information and prices.
• All Tillett car seats are premium quality products designed and manufactured in the United Kingdom.

COMPATIBLE SEAT BRACKETS

• TB FIAO2 Brackets
• STBI Bracket Set

COMPATIBLE SEAT PANELS

• TP2

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your license plate or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

TILLETT-W1I-40C/GRP (W1i Carbon GRP Car Seat)

TILLETT-W1I-40C/GRPBF (W1i Carbon GRP Car Seat With Backframe)

TILLETT-W1I-40GRP (W1i GRP Car Seat)

TILLETT-W1I-40GRPBF (W1i GRP Car Seat With Backframe)

TILLETT-W1I-44C/GRP (W1i Carbon GRP Car Seat)

TILLETT-W1I-44C/GRPBF (W1i Carbon GRP Car Seat With Backframe)

TILLETT-W1I-44GRP (W1i GRP Car Seat)
